iProcurement Setup Document and it's basic flows in R12.2

Mandatory Setups for iProcurement:

1. Profile Options
2. Shopping Category Creation
3. Category Hierarchy
1. Top Category (Browsing Category) - Create Top-Level Category
1. Child Category (Browsing Category) - Create Child
1. Shopping Category (Item Category) - Insert Existing Child
4. Purchasing Category Creation
5. Category Mapping
6. Item Creation and Purchasing Category Assignment
7. Content Zone Creation
8. Information Template Creation
9. Smart Form Creation
10. Create Stores
11. Blanket Purchase Agreement Creation
12. Personalization's (Profile Option - "Personalize Self-Service Defn = Yes")

1. Profile Options:

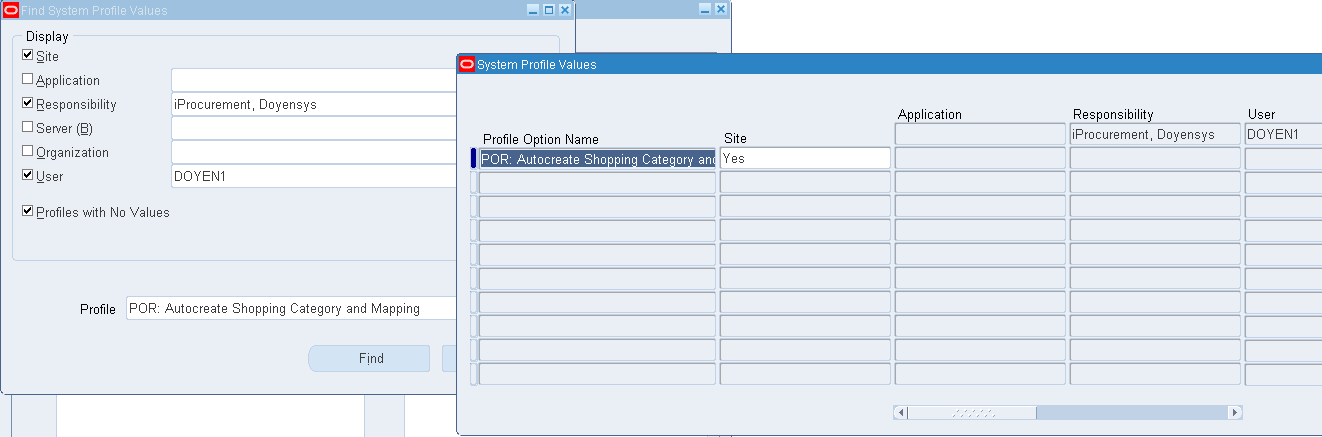

POR: Autocreate Shopping Category and Mapping = Yes

POR:Allow Manual Selection of Source = Yes

The rest of the profile options will leave it with defaulted values.

2. Shopping Category Creation:

We will build one case. Based on that we will define the categories and  then will do the Category Mappings.

Case:

It's a Top Down approach.

First we will have a Top level category (Root Category) called "Browsing Category". Under that, either we may have multiple child Browsing Categories or Shopping Categories.

First we should create the bottom level category called "Shopping Category"

Responsibility: iProcurement Catalog Administration

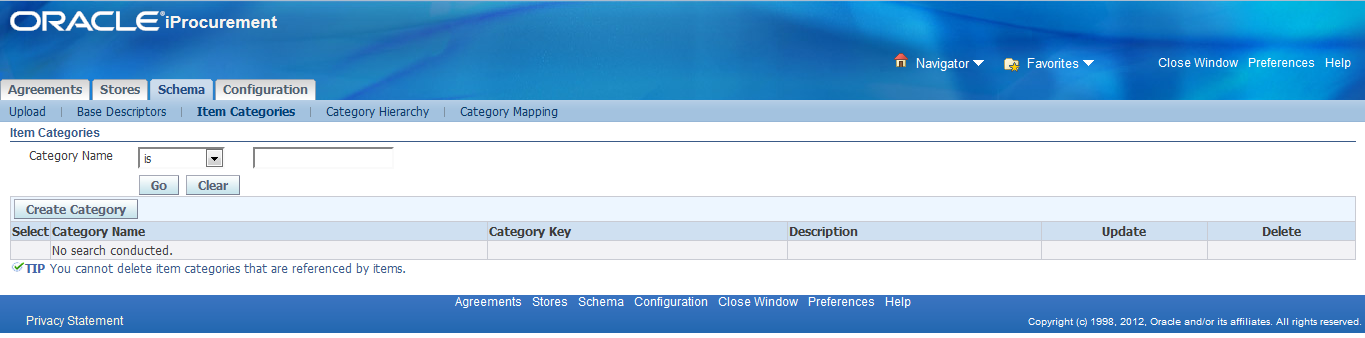

Navigation: iProcurement Administration: Home Page > Schema > Item Categories

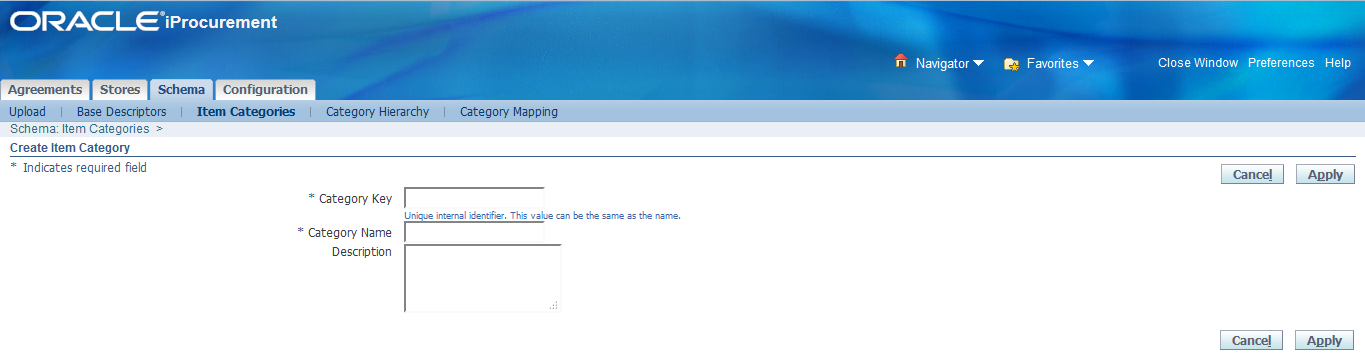

Click "Create Category"

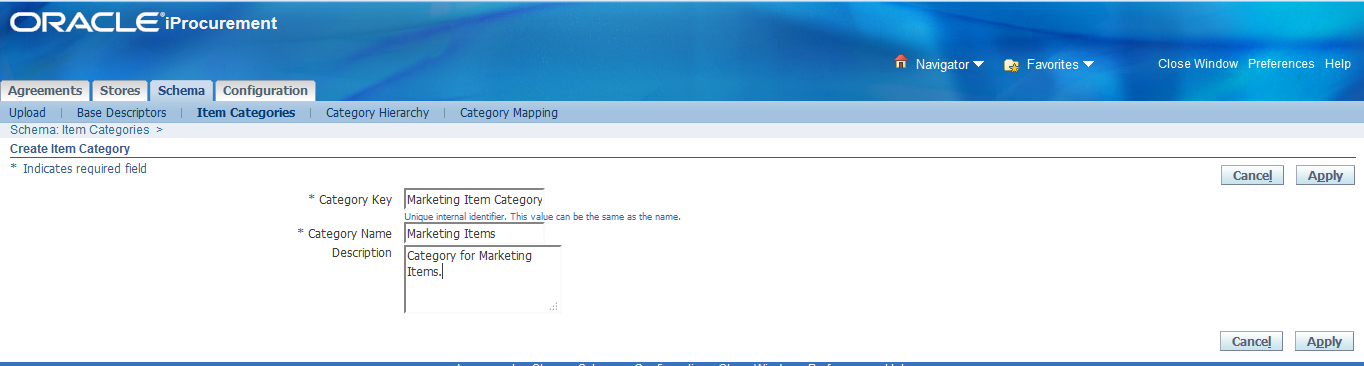

Enter the Category Details

Note:

1. Category Key: Once we enter the value and save, we can't modify.

2. Category Name & Category Description: We can change the values even after save by clicking "Update" button.

3. Category Key and Category Name values may be same.

Click "Apply"

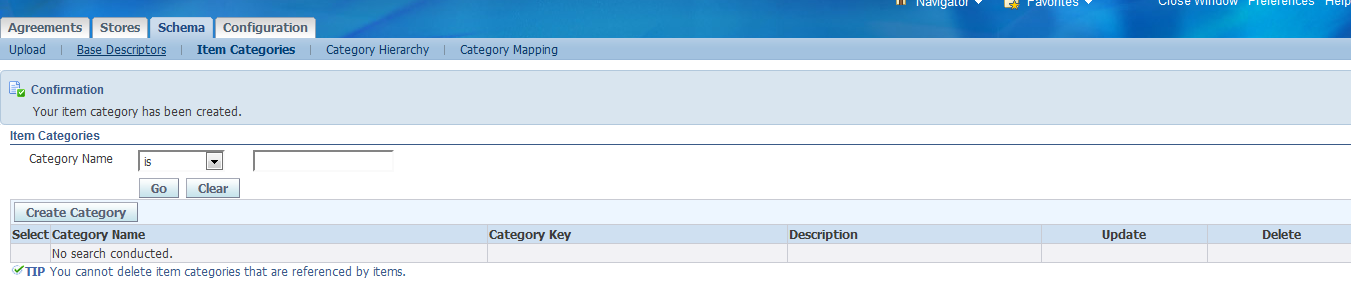

Confirmation page will come.

Search the Category Name and check the newly created Category.

Now, we have successfully created the Shopping Category (iProcurement Category)

Now, we will see the "Category Hierarchy"

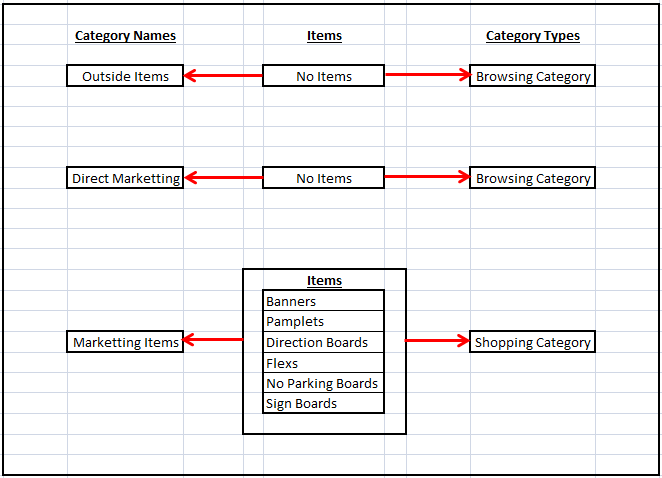

3. Category Hierarchy:

Root Category (Browsing Category) ===== > Outside Items

Child Category (Browsing Category) ===== > Direct Materials

Child Category (Shopping Category) ===== > Marketing Items

Create the Root Category (Browsing Category) first

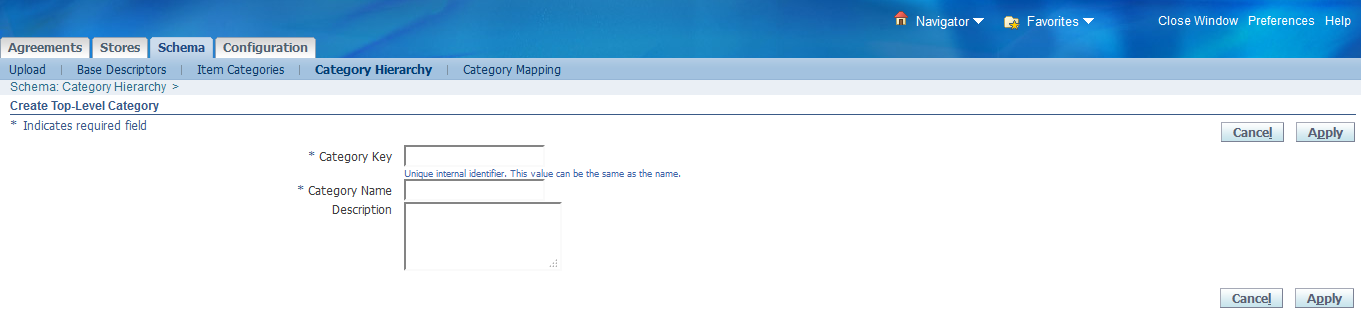

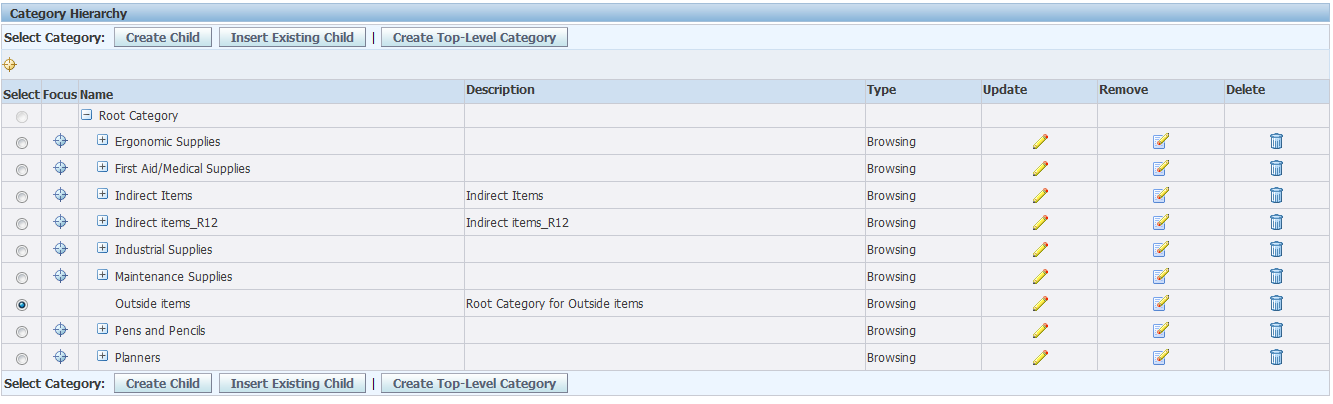

Navigation: Schema > Category Hierarchy > Create Top-Level Category

Click on "Create Top-Level Category"

Enter the values in respective fields

Click on "Apply"

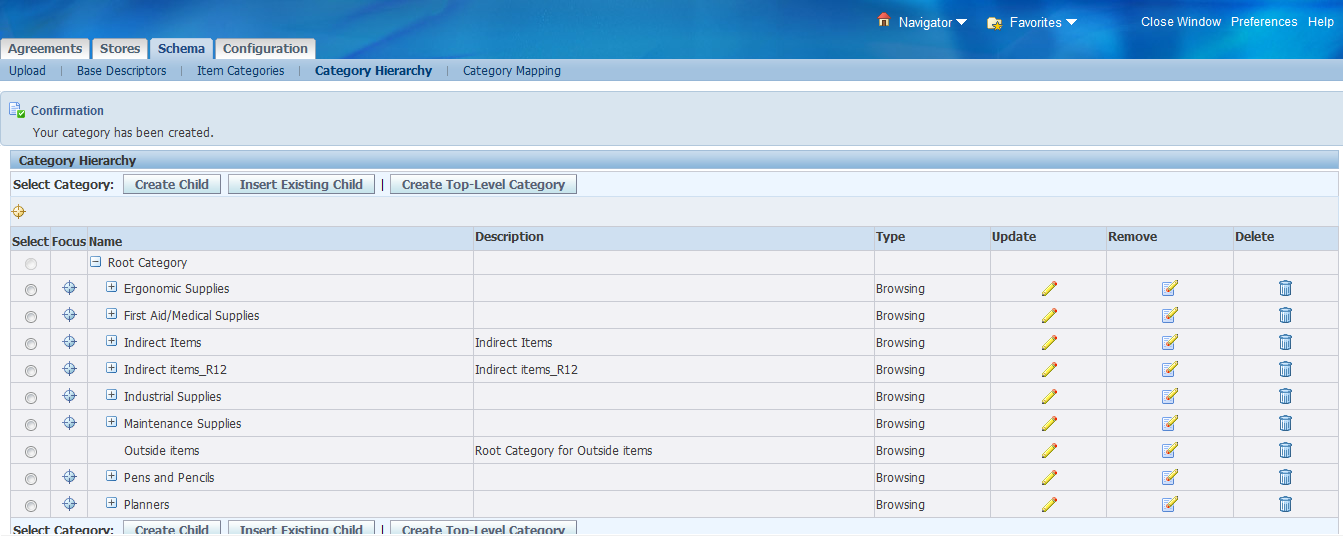

Upon Apply, you will get the confirmation page and you can see the newly created category with Type as "Browsing".

Select that newly created category "Outside items" and click "Create Child" to create another Browsing Category called "Direct Materials".

Click on "Create Child"

Enter the details

Click on "Apply"

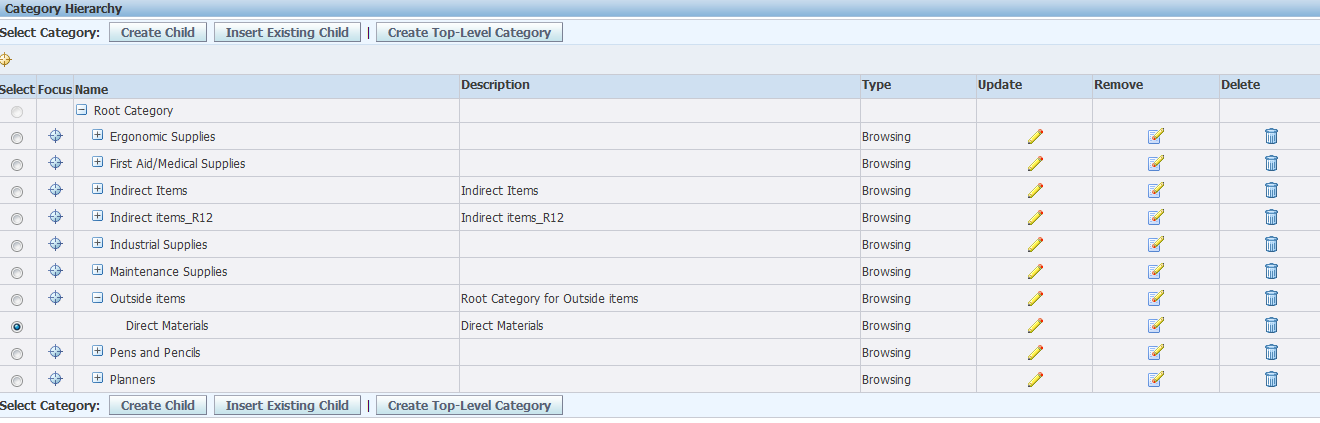

Now, you can see "Direct Materials" Browsing Category under "Outside Items" category

Now, you insert the Shopping Category "Marketing Items" into this Hierarchy

Select the Browsing Category "Direct Materials" and click on "Insert Existing Child"

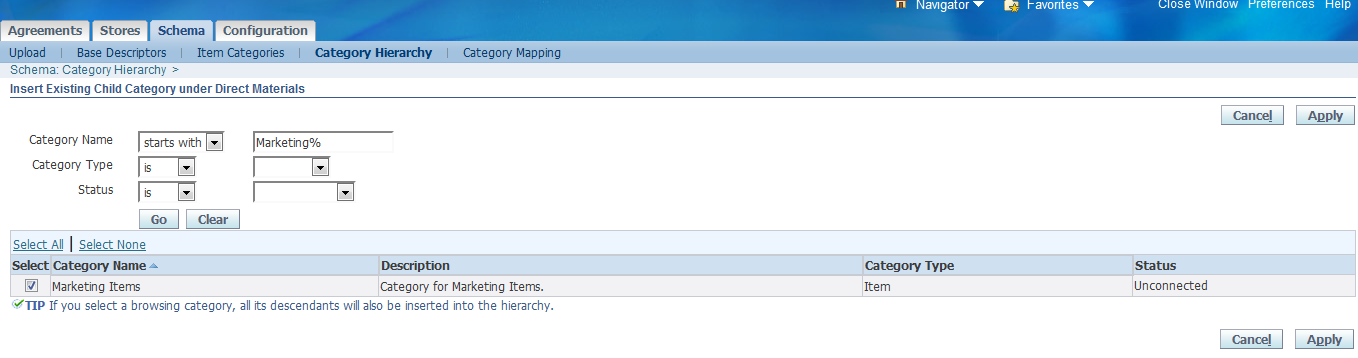

Click on "Insert Existing Child"

Query the existing category "Marketing Items"

Retrieved the existing category.

Select that category

Click on "Apply"

Now, you can see the entire Category Hierarchy like below.

Outside Items ==== > Direct Materials ==== > Marketing Items

We have successfully created the Category Hierarchy.

4. Purchasing Category Creation:

Now we will create one new item in Inventory module with new Purchasing Category and then will map that Purchasing Category into our Shopping Category in iProcurement.

Lets create a new Purchasing Category called "Marketing Materials" in Inventory Module. To create the new category, we need to add these new values into Value set. To find out that KFF and Value Set, follow the below steps.

Step 1: Find out the "Default Category Set" for Purchasing

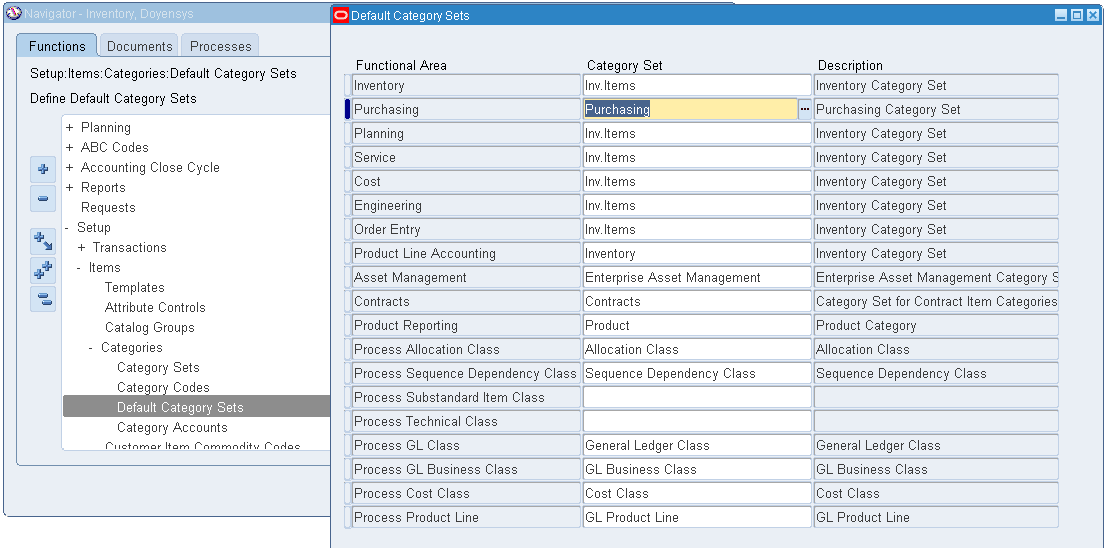

Navigation: Inventory > Setup > Items > Categories > Default Category Sets

Note down the category Set Name for the functional area "Purchasing"

Default Category Set for Purchasing = Purchasing

Step 2: Open the Category Set and note down the Flex Structure

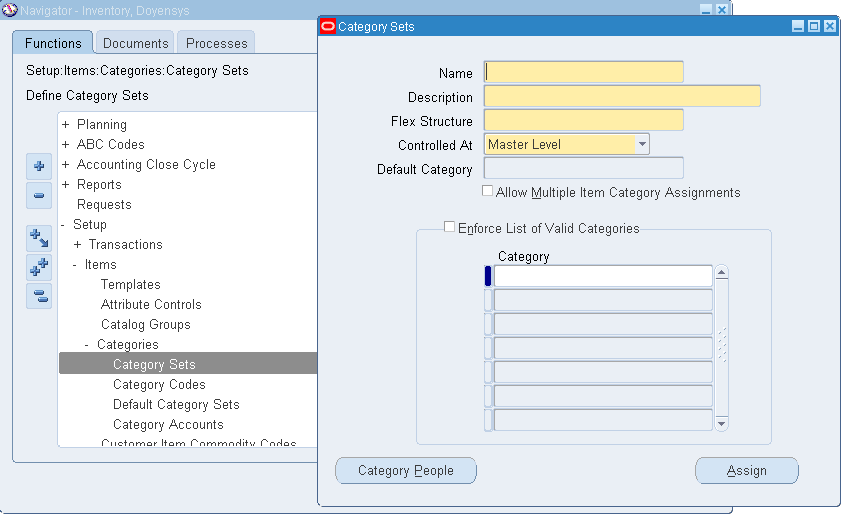

Navigation: Inventory > Setup > Items > Categories > Category Sets

Flex Structure = PO Item Category

Step 3: Find out the KFF Segments

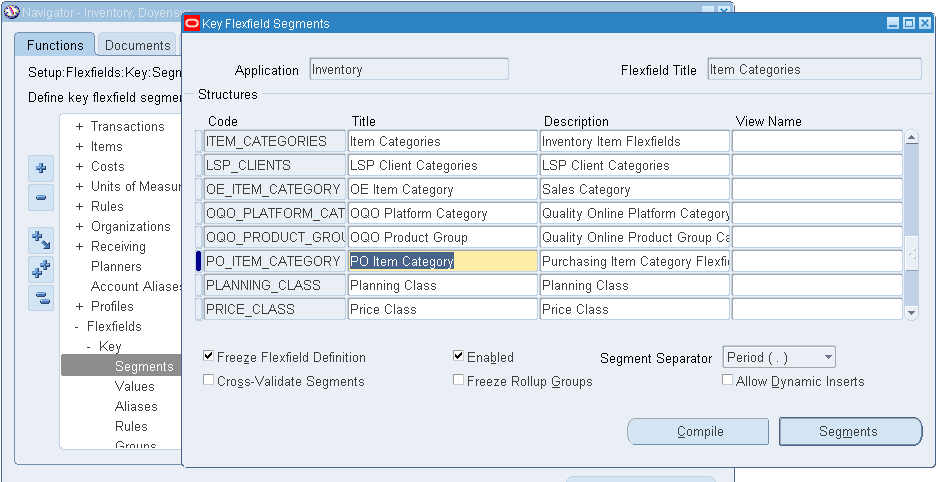

Navigation: Inventory > Flexfields > Key > Segments

Query by

Application: Inventory Title : Item Categories

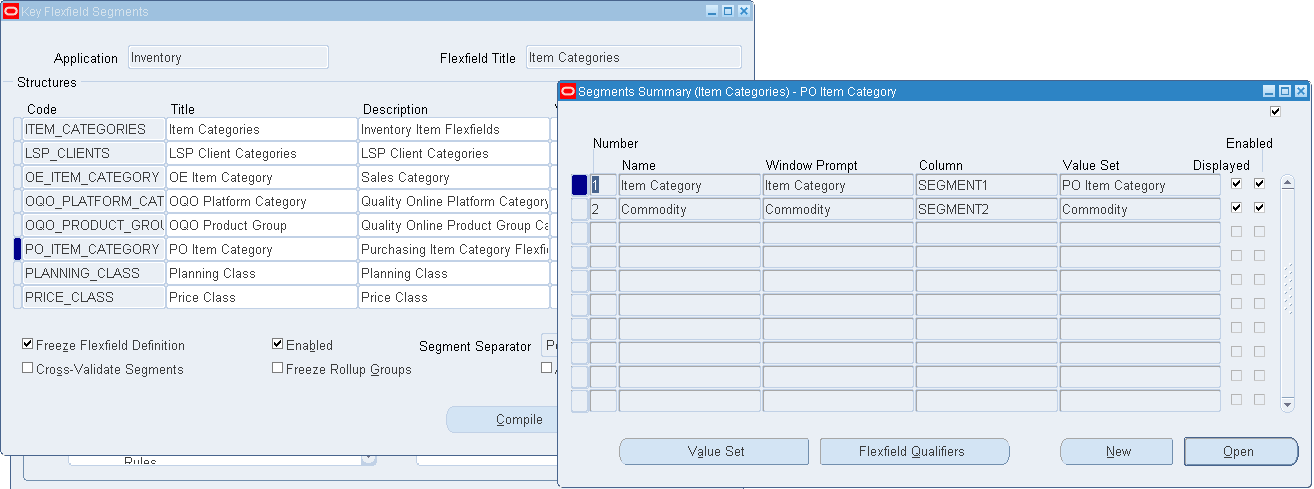

Once query retrieves the result, find out the Purchasing Flex Structure name "PO Item Category"

Click on "Segments"

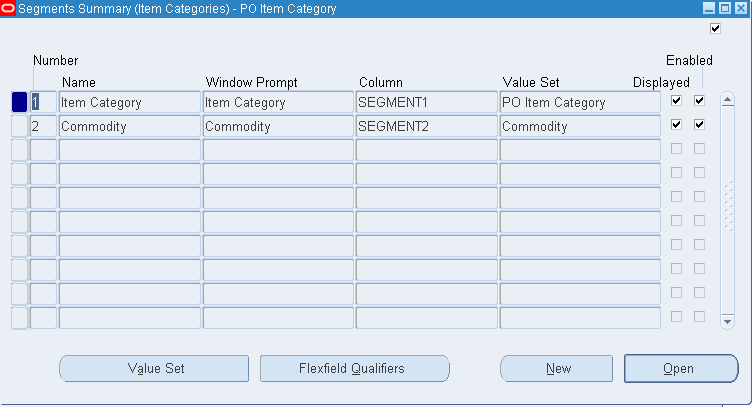

Note down the Value Set Names for both the Segments

Segment1 = Item Category (Value Set = PO Item Category)

Segment2 = Commodity (Value Set = Commodity)

Click on "Value Set" for the SEGMENT1 "Item Category" and check the Validation Type

Note down the Validation Type. It's Independent.

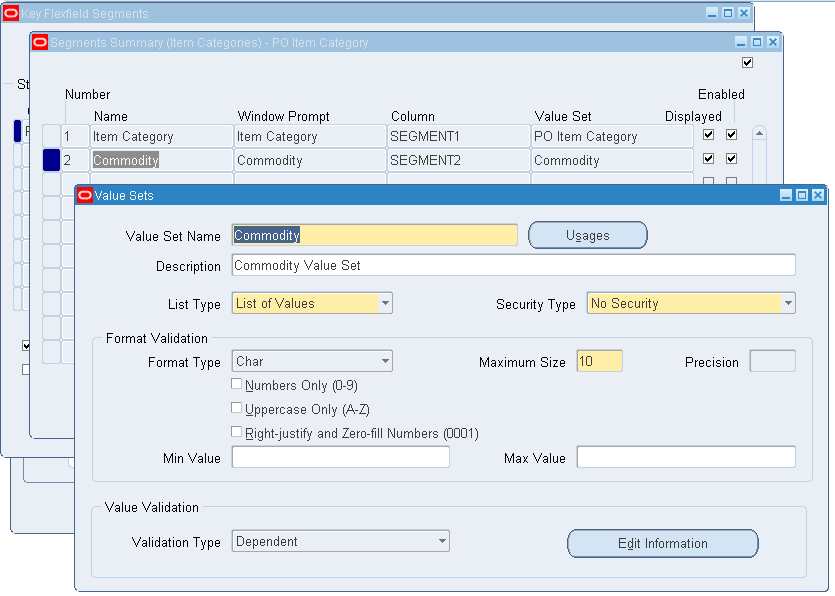

Now, click the another segment "Commodity" and check for Value Set Validation Type.

It's "Dependent"

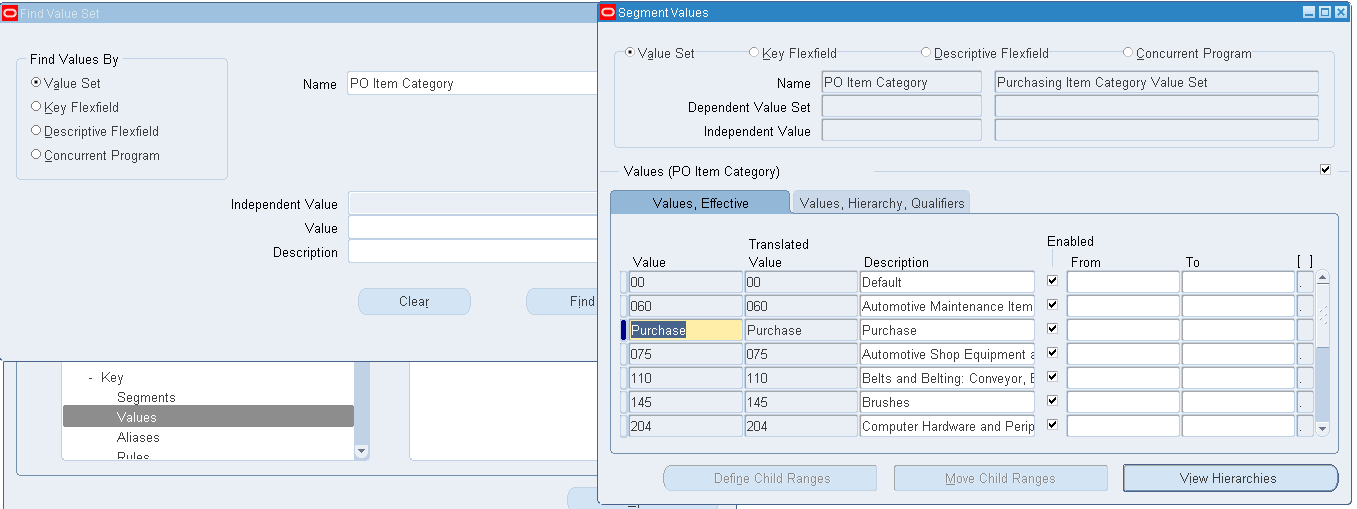

Step 4: Add the values into Value Set

Navigation: Inventory > Setup > Flexfields > Key > Values

Click Find

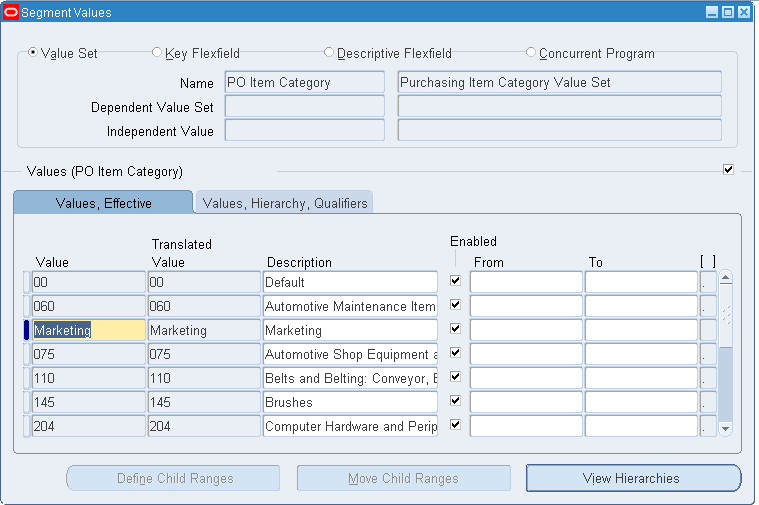

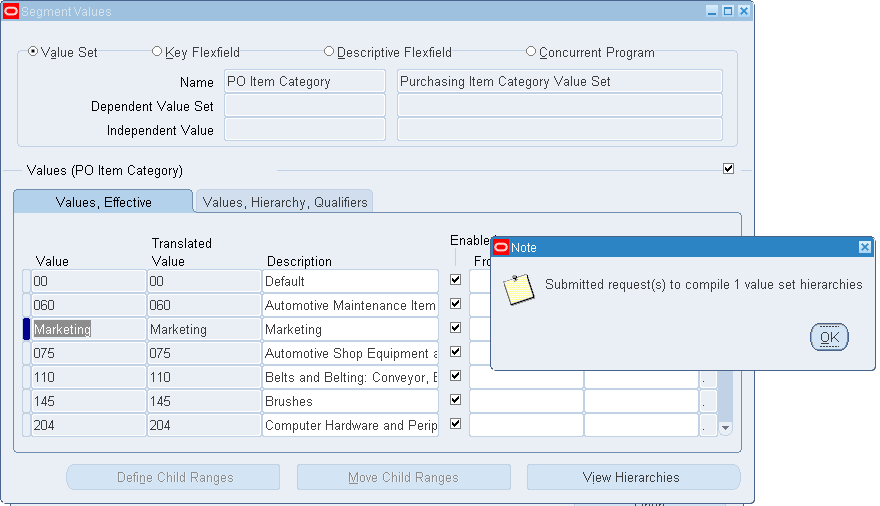

Add the new value "Marketing"

Save

Note: PO Item Category value set Validation Type is "Independent". So, what ever the values we are adding into this value set, all values will display. But, the "Commodity" value set is "Dependent" value set. So, We need to define the Dependent value from previous value set and then we need to add the new value.

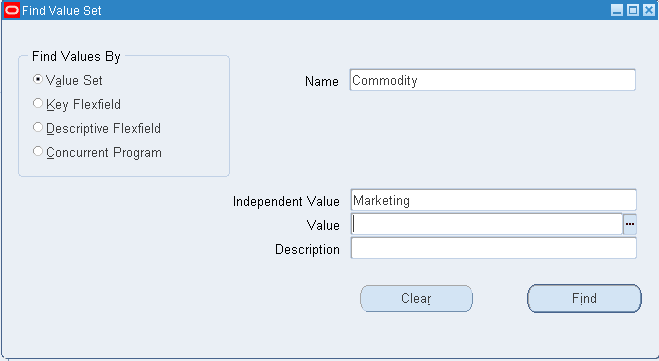

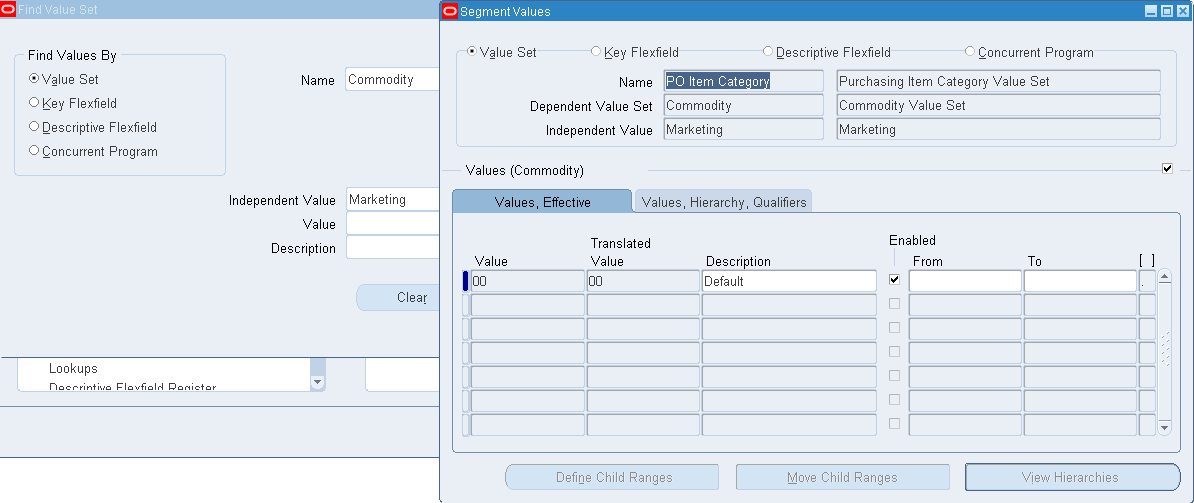

Now, add the another value "Items" in the value set "Commodity"

While adding the new value in the Dependent Value Set, we need to mention the Independent Value of the previous value set. In our case, the previous value set is PO Item Category. So, we need to enter the value from that value set.

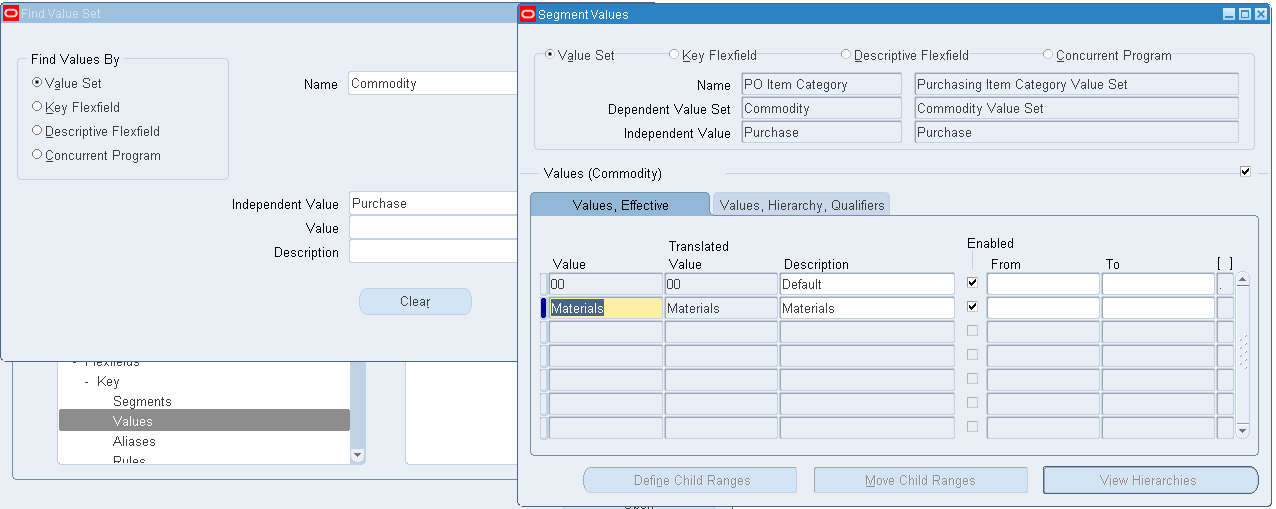

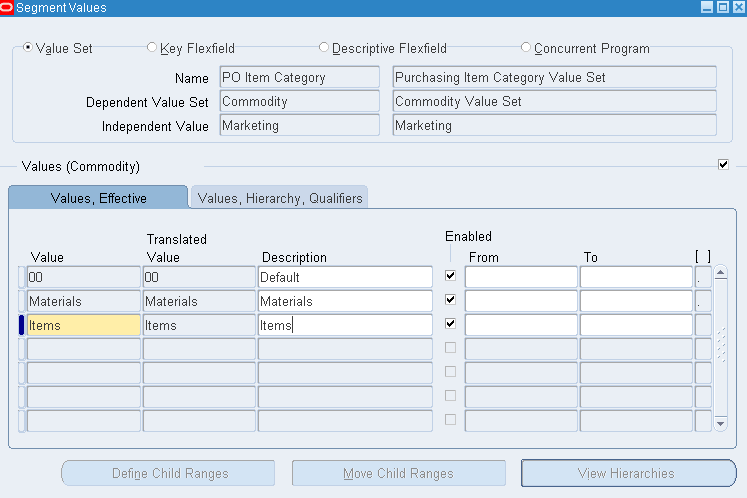

Add two new values like "Materials" and "Items"

Now, create the Purchasing category "Marketing Materials" and "Marketing Items" and assign it to Purchasing Category Set

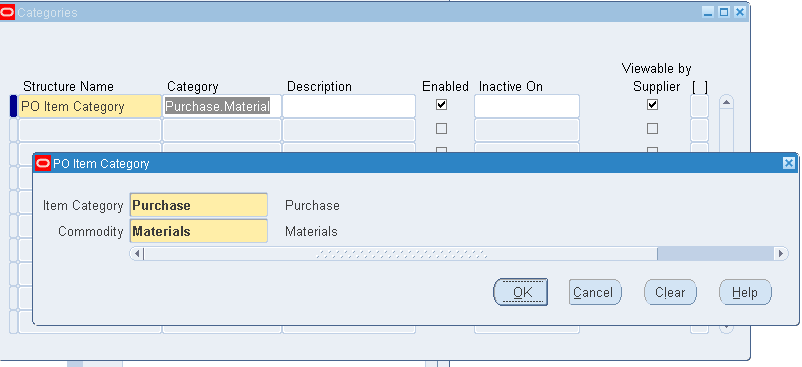

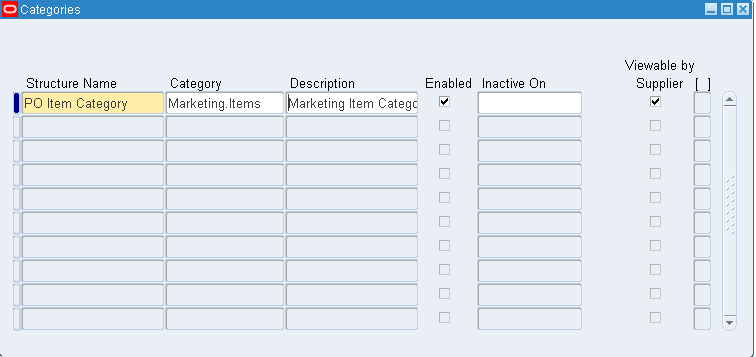

Step 5: Create Purchasing Category Code

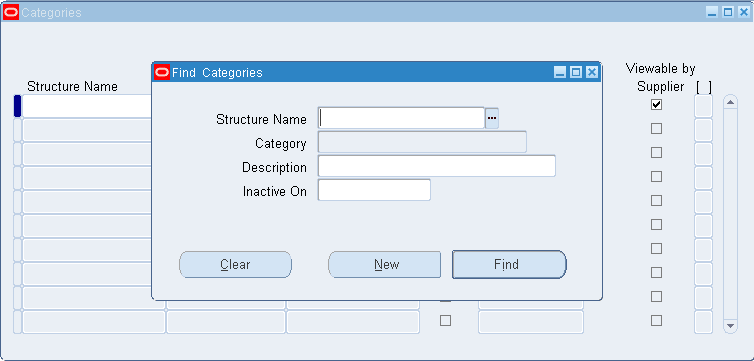

Navigation: Inventory > Setup > Items > Categories > Category Code

Click on "New"

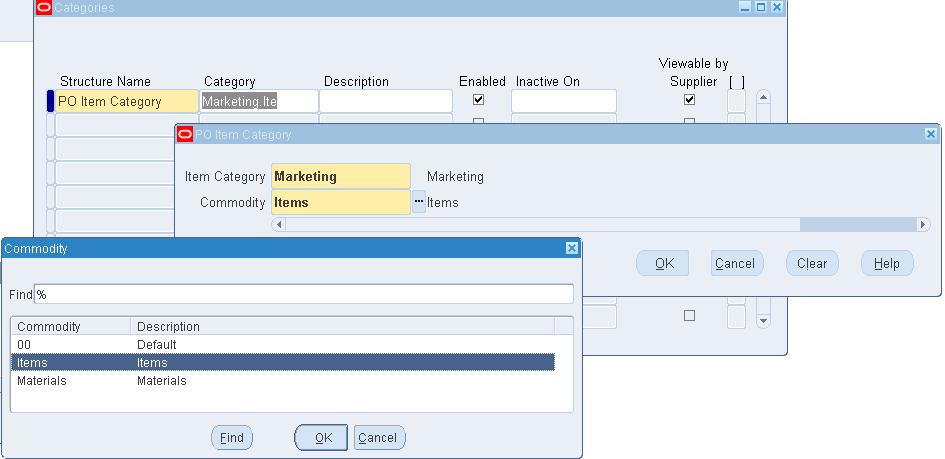

Create a new Category Code like "Marketing.Items"

Save

Step 6: Assign Category into Category Set

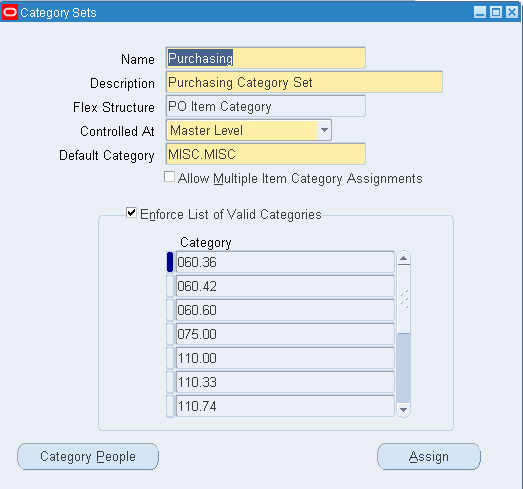

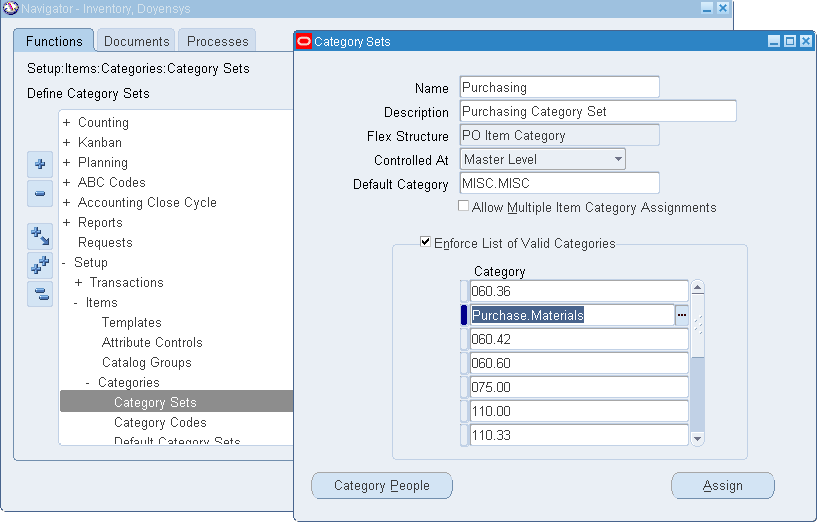

Navigation: Inventory > Setup > Items > Categories > Category Sets

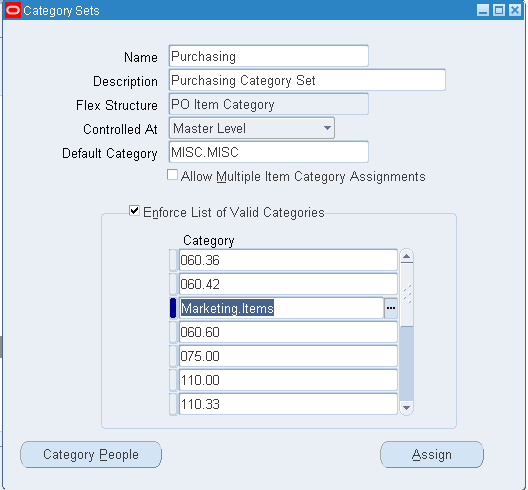

Query the default "Purchasing" Category Set and add the Category "Marketing.Items" into that Purchasing Category Set

Save

5. Category Mapping:

Query the newly created Purchasing Category and map it to Shopping Category.

In our case, the newly created Purchasing Category is "Marketing.Items" and Shopping Category is "Marketing.Items"

Responsibility: iProcurement Catalog Administration

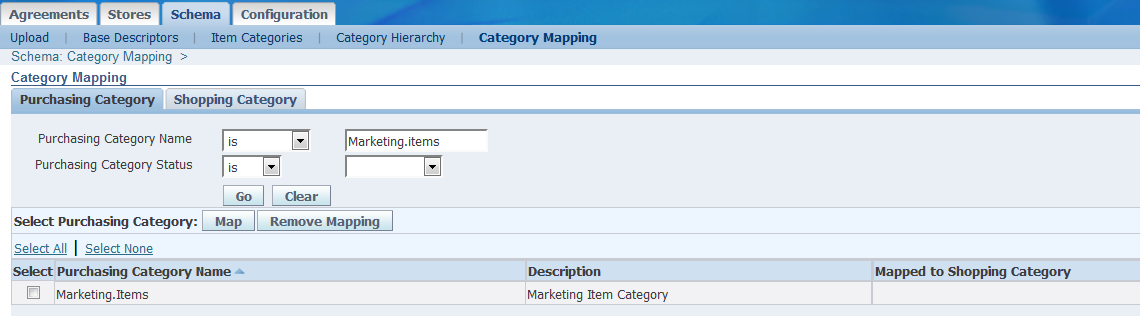

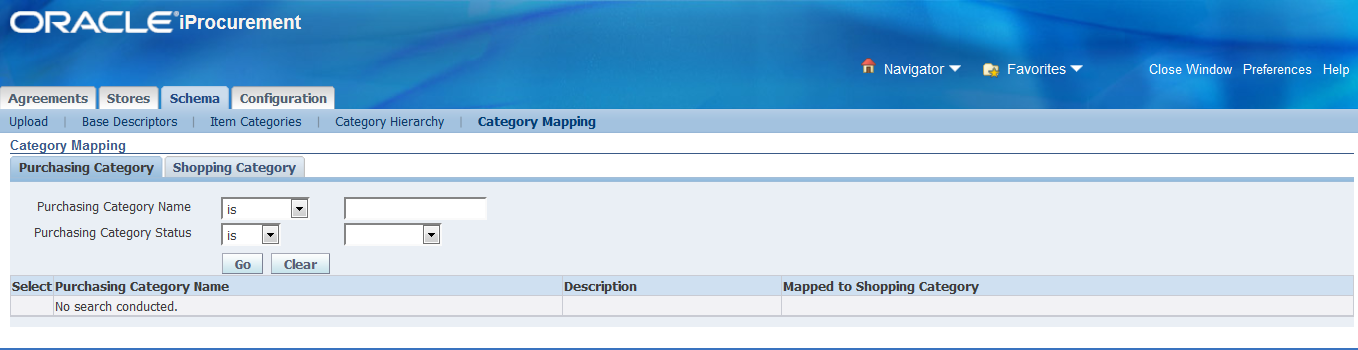

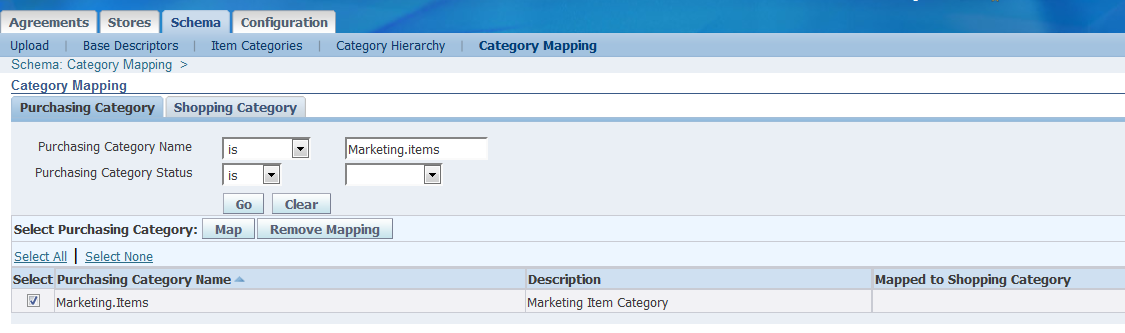

Navigation: Schema > Category Mapping

Query by either "Purchasing Category" name or "Shopping Category" name

Select the check box

Click on "Map"

Query the Shopping Category "Marketing.Items"

Click "Apply"

Now, it's mapped.

Purchasing Category "Marketing.Items" have been mapped to Shopping Category "Marketing.Items"

6. Item Creation and Purchasing Category Assignment:

Now, create the new item and assign the newly created Purchasing Category "Marketing.Items"

Navigation: Inventory > Items > Master Items

Apply the Purchasing Template

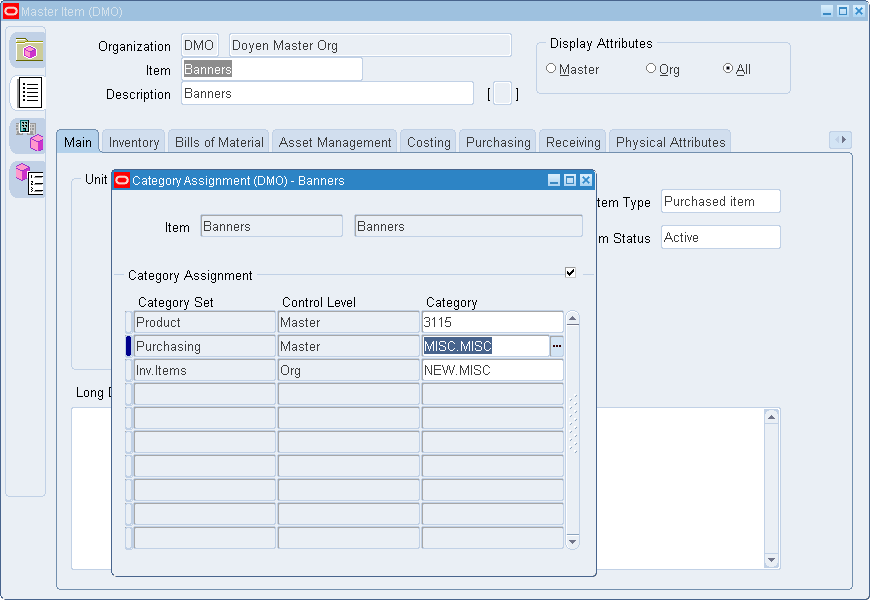

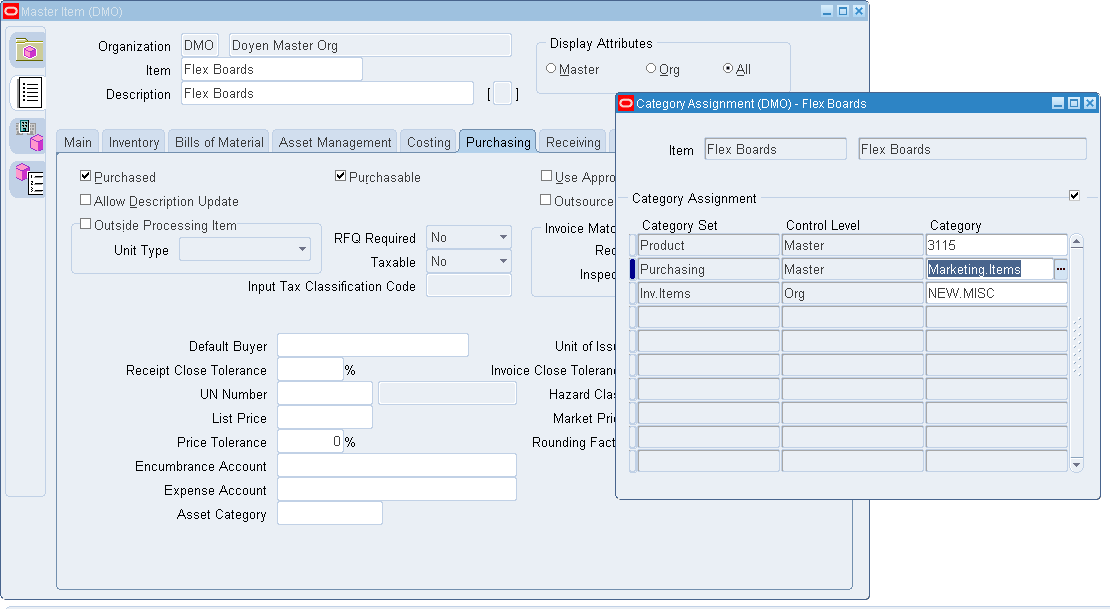

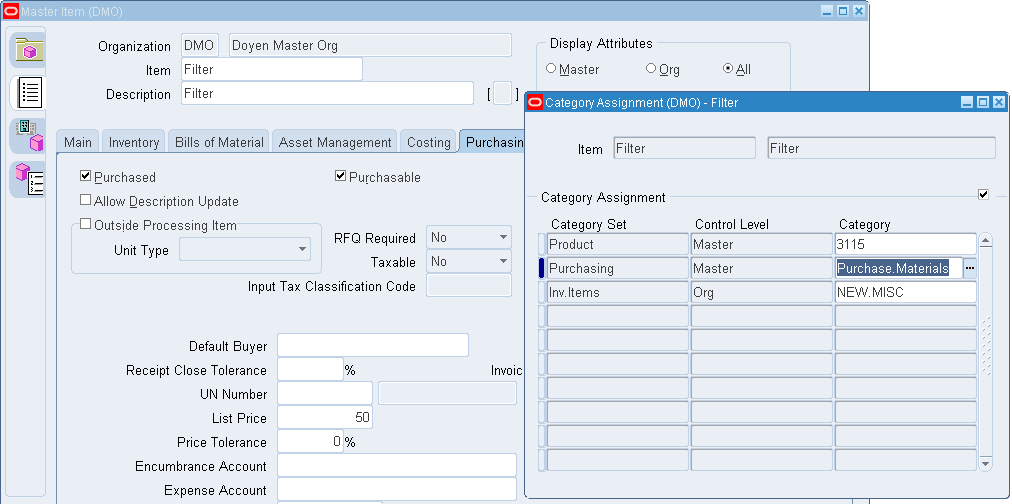

Assign the Purchasing Category

Navigation: Tools > Categories

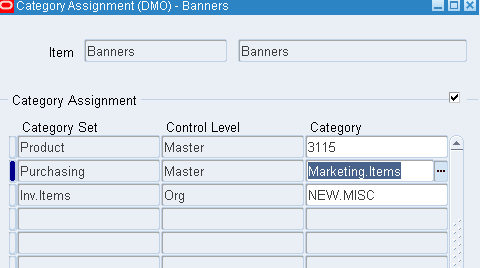

Change the default category name from "MISC.MISC" to "Marketing.Items"

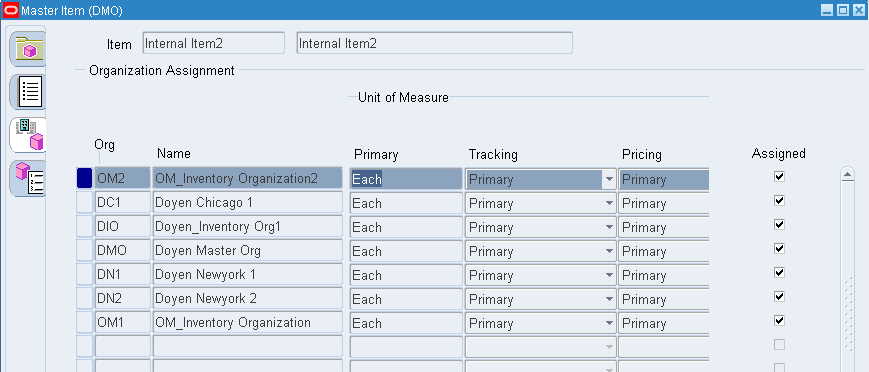

Assign it to required organizations

7. Content Zone Creation:

Responsibility: iProcurement Catalog Administration

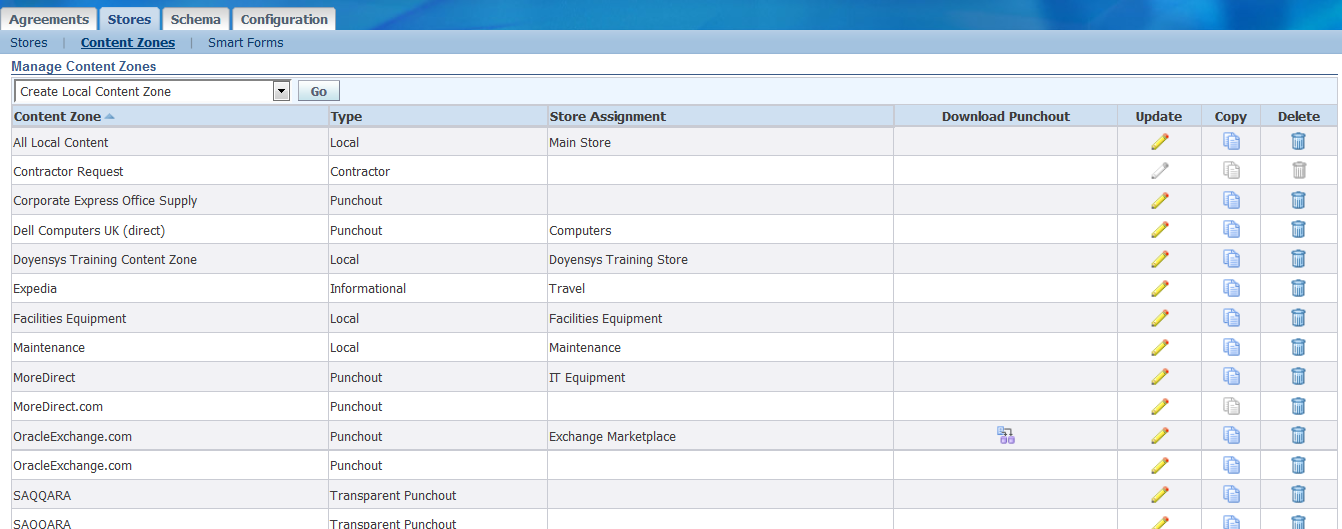

Navigation: Stores > Content Zones

Select the Action "Create Local Content Zone" option from the LOV and click on "Go"

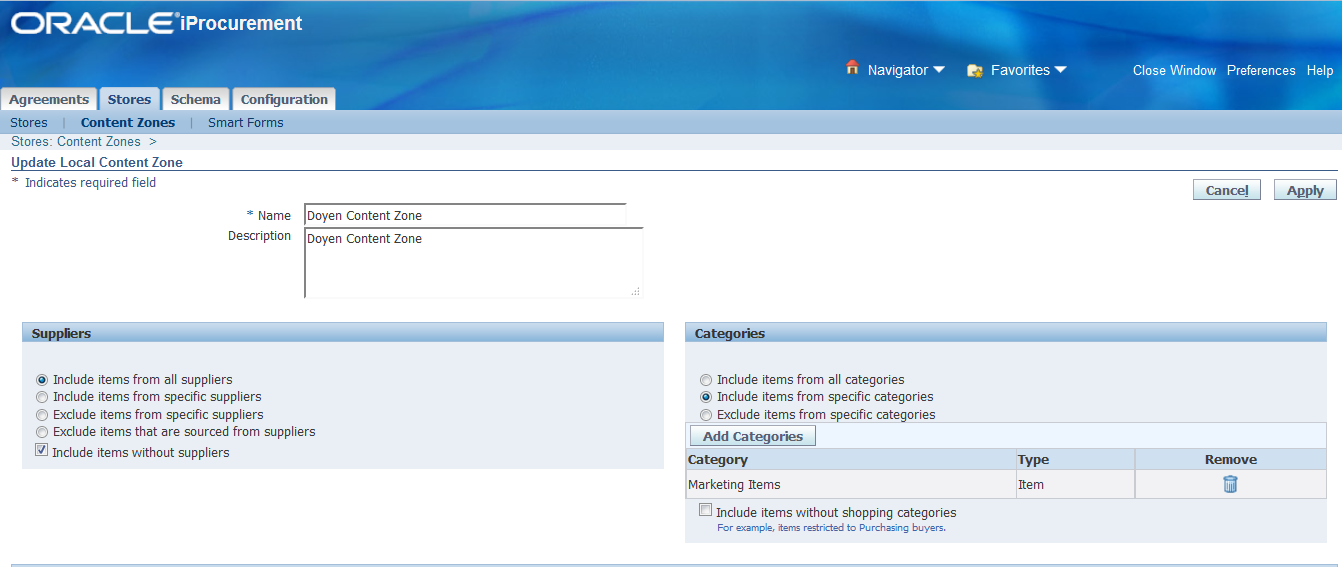

Enter the Content Zone Name and Description. And select the "Suppliers", "Categories" and then assign the "Content Zone Security"

Note for Suppliers:

Include items from all suppliers: Users can create the requisitions for all the items for all the suppliers (It should have Blanket Purchase Agreements)

Include items from specific suppliers: Users can create the requisitions for the items which was assigned to a specific supplier. If we enable this option then we need to enter that specific supplier name (It should have Blanket Purchase Agreements)

Exclude items from specific suppliers: Users can not create the requisitions for the items which was assigned to a specific supplier.

Exclude items that are sourced from suppliers: Users can not create the requisitions for the items which was already sourced from the suppliers (ASL and Sourcing Rule).

Include items without suppliers: Without the Blanket Purchase Agreements, the users can create the requisitions for all the items. As soon as we create the items with purchasing category and if that purchasing category mapped into shopping category then we can raise a requisition.

In the above case, we have created the "Doyen Content Zone" and restricted by specific category "Marketing.Items" and operating Unit "OM_Operating Unit". So, we can raise a requisitions for all the items that belongs to "Marketing.Items" category without the Blanket Purchase Agreements.

Click "Apply"

Get the confirmation page and our newly created content zone "Doyen Content Zone".

8. Information Template Creation:

You can set up information templates to gather additional information in Oracle iProcurement to pass necessary order processing information to suppliers. When an information template is assigned to a category or item, the application prompts requesters to provide the information specified in the template when the item is added to the shopping cart. This information becomes a line-level attachment to the requisition.

For example, you can implement information templates for items such as business cards that require additional information (name, address, e-mail address, phone) from the requester. Oracle iProcurement prompts for name, address, e-mail address, and phone number when you order business cards. Each information template must be associated with an Oracle Purchasing item or item category. If an information template is associated with an item category, all items belonging to that category are also associated with the template.

Responsibility: Purchasing Super User

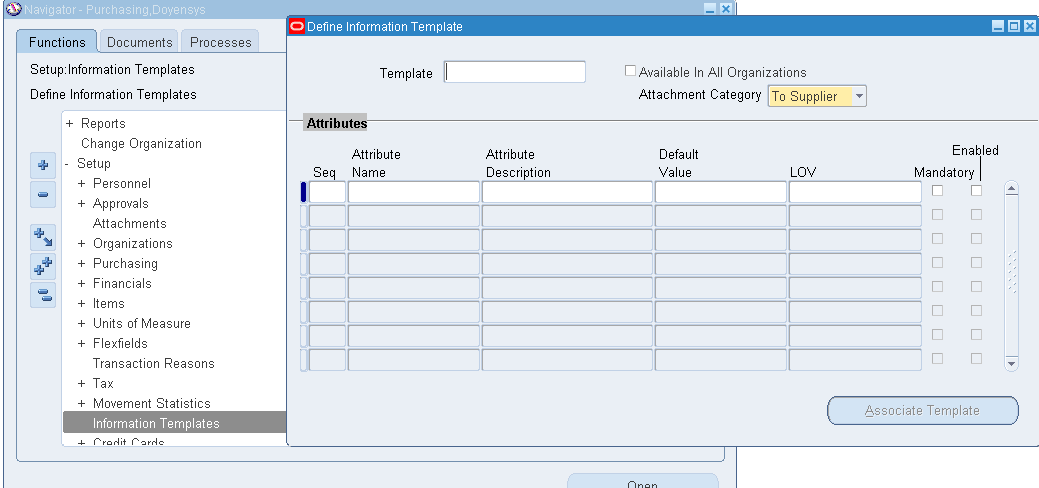

Navigation: Setup > Information Templates

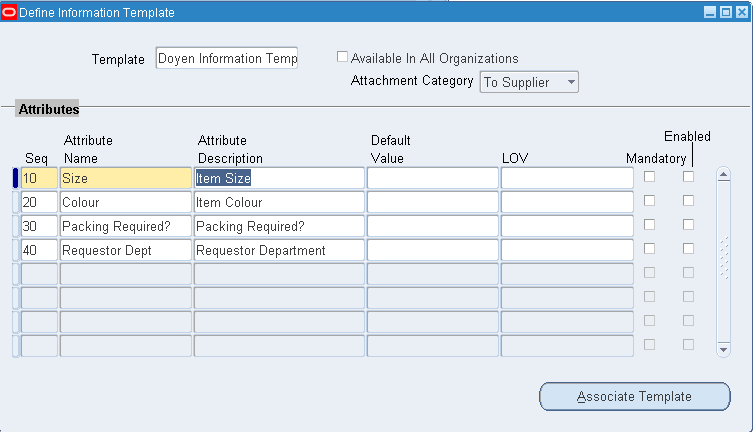

Define the Template Name and enter all the other details

Created the "Doyen Information Template" and saved

9. Smart Forms Creation:

Requesters can procure an item or service that is not found in the catalog. For these cases, they can use a non-catalog request. The non-catalog request offers the ability to add an item or service to the shopping cart based on a description of the item or service. Through the use of smart forms, companies can conveniently control both the list of fields and whether a particular field is enterable or pre-defined. For example, purchasing organizations can lock-down the purchasing category for certain requests and thereby more accurately categorize spend. Similarly, purchasing administrators can ensure spend is exclusively directed to preferred suppliers, and default contract numbers achieve touchless buying.

The following figure shows the non-catalog request that requesters can enter. In the Item Type field, requesters can enter goods billed by quantity, service billed by quantity, or goods or services billed as an amount.

In addition to this standard non-catalog request, you can create different smart forms and assign them to one or more stores.

Oracle iProcurement provides a default standard smart form. The catalog administrator can create multiple additional smart forms. For example, you can create a Computer Services smart form and an Office Services smart form. Once these smart forms are assigned to a store, both appear for the requester to select from.

To use the single, standard smart form that Oracle iProcurement provides, you do not need to perform any setup other than the profile options.

Responsibility: iProcurement Catalog Administration

Navigation: Stores > Smart Forms

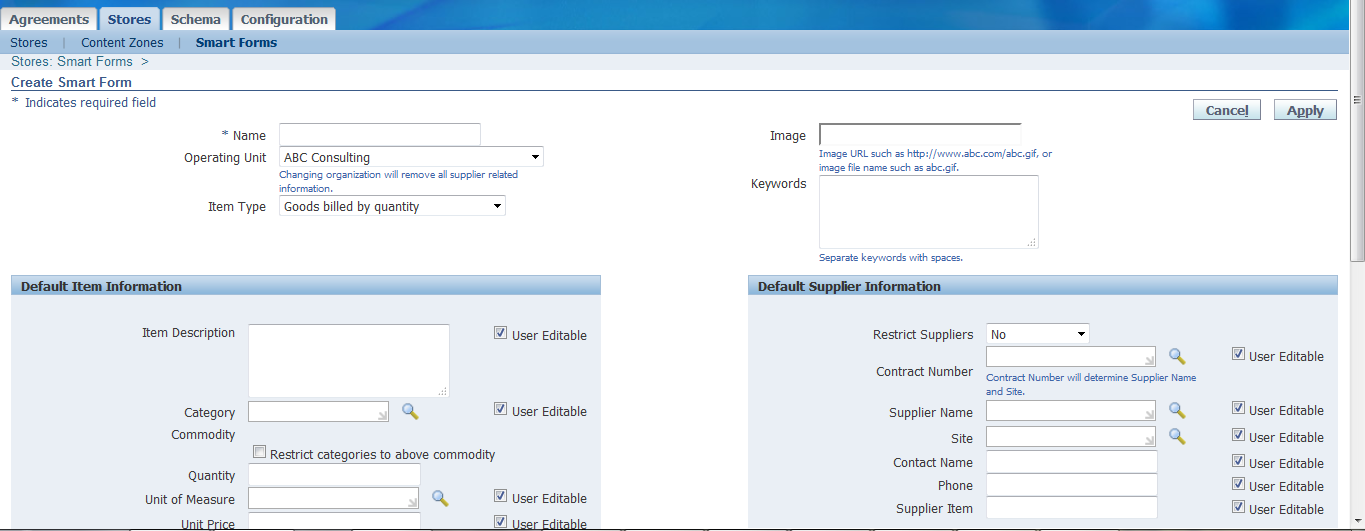

Click "Create Smart Forms"

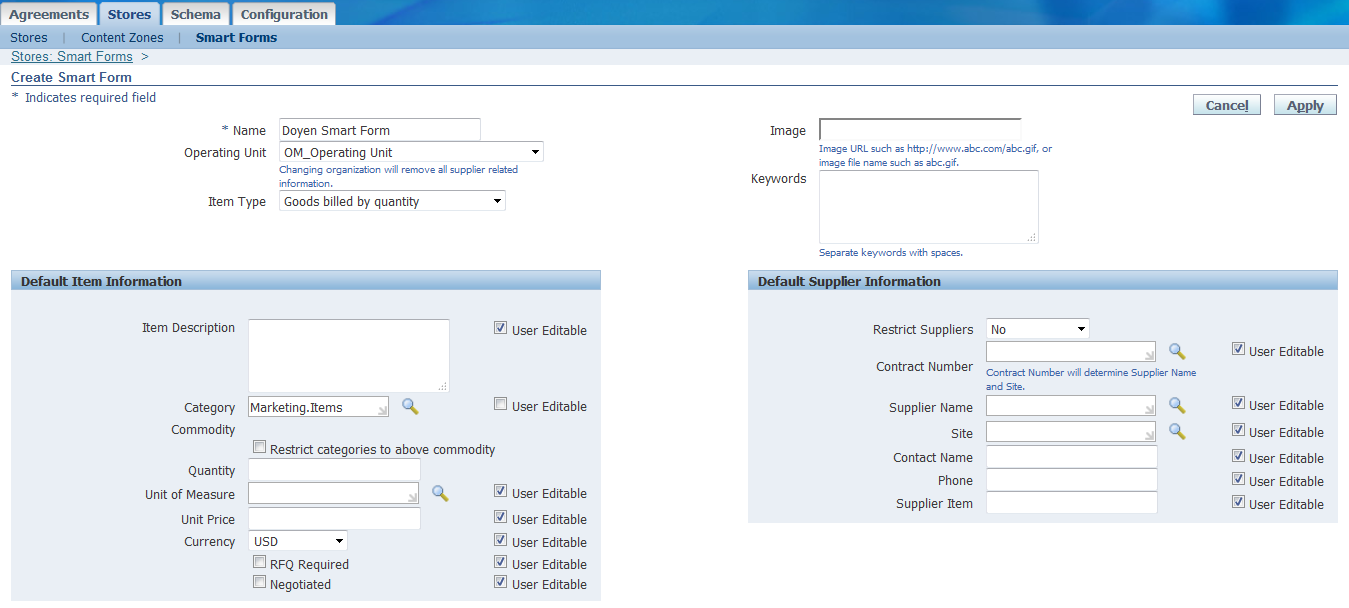

Create the Smart Form by entering Name, OU, Item Type and Default item Information and Default Supplier Information details.

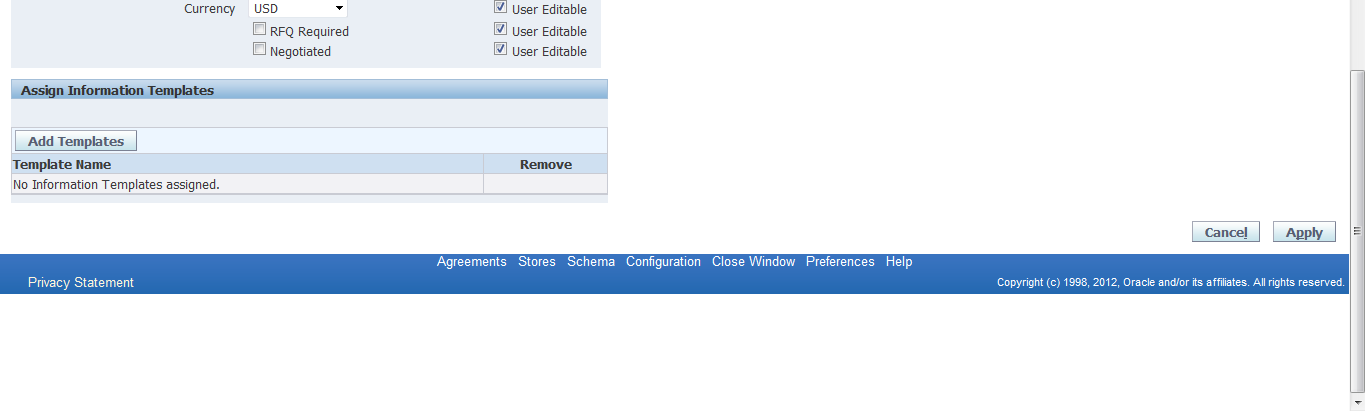

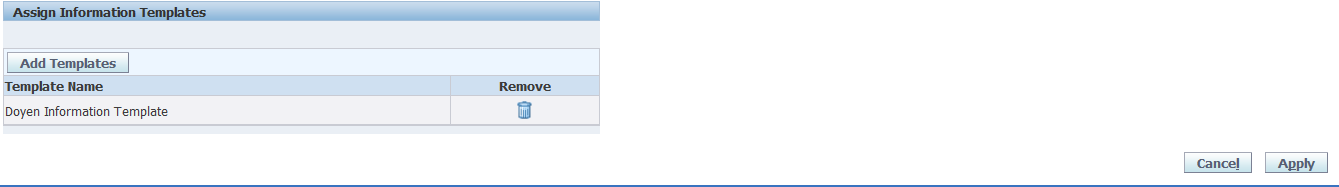

Assign the "Information Template" which was created earlier

Attached the Information Template "Doyen Information Template" which was created earlier to this Smart Form.

Click "Apply"

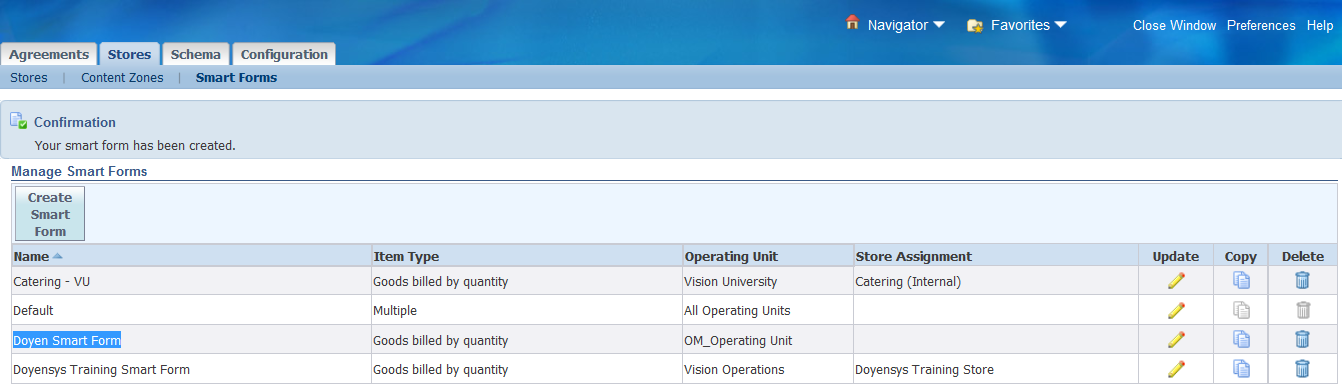

Will get the Confirmation page and it will display the newly created Smart Form name.

10. Create Stores:

A store enables you to group content zones and smart forms into a single, searchable store. The store should be easy for requesters to understand - for example, a store containing all computer supplies or all office supplies.

Responsibility: iProcurement Catalog Administration

Navigation: Stores > Stores

Click on "Create Store"

Enter the Store details and assign the Content Zones and Smart Forms

Click on "Continue"

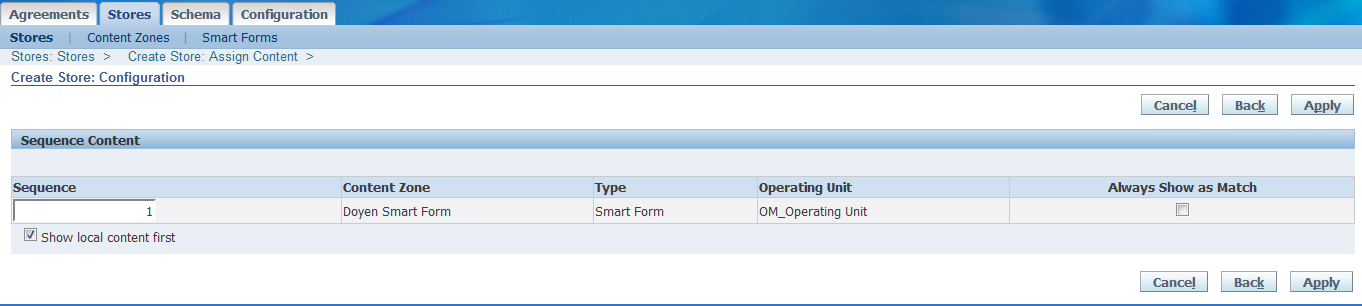

Sequence Stores:

Assign the "Sequence"

Click "Apply"

Store is created successfully. But, it's not in the front in the list.

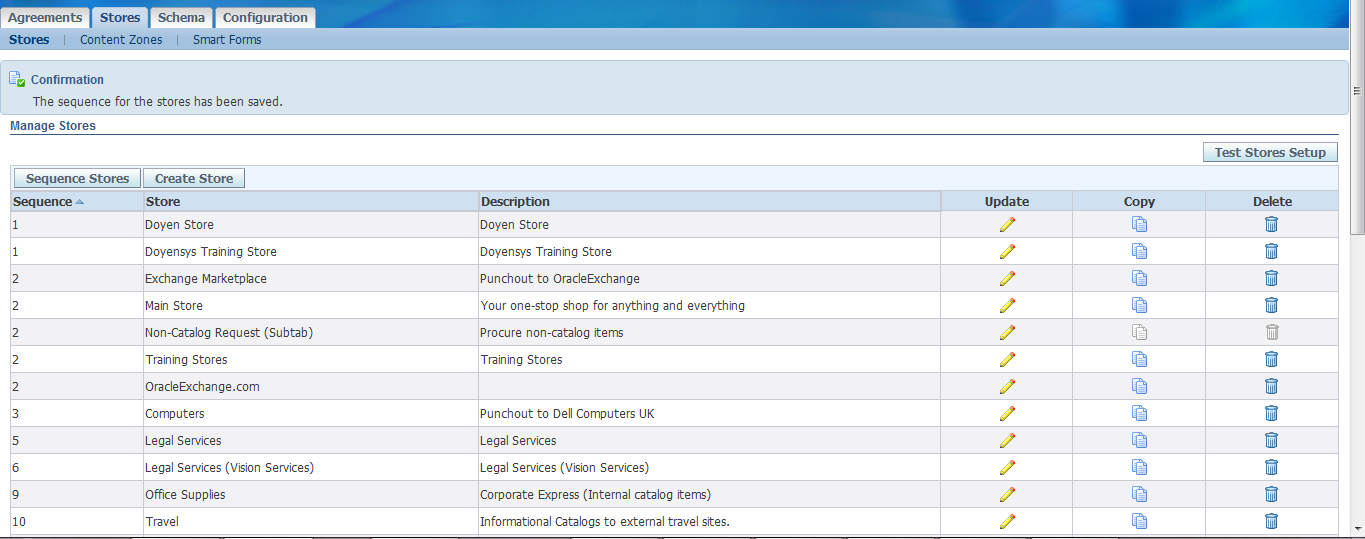

Click "Sequence Stores"

Assign the Sequence Number to our Store "Doyen Store"

Click "Apply"

Now, it's sequenced and displayed in the front.

11. Create iProcurement Responsibility:

Responsibility: System Administrator

Navigation: Security > Responsibility > Define

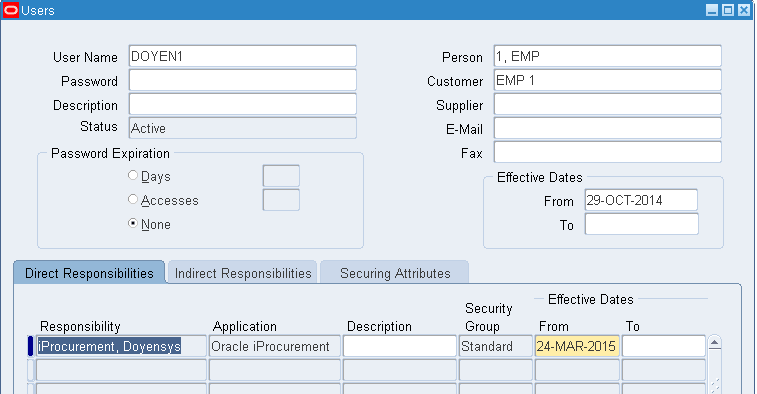

User - Responsibility Assignment:

Assign it to User "Doyen1"

Navigation: Security > Users > Define

Profile Options:

Create the Requisition:

Case I - Item without and with List Price:

Responsibility: iProcurement, Doyensys

Navigation: iProcurement Home Page

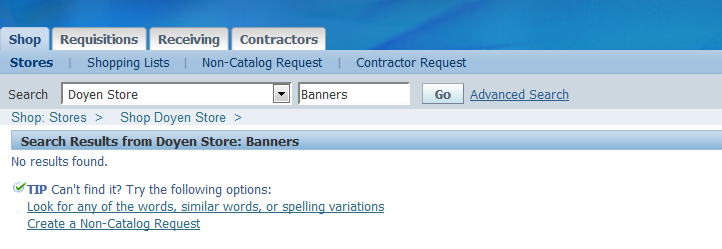

Search our item "Banners" in our Store "Doyen Store"

Item not available in our Store

List Price at Master Organization level:

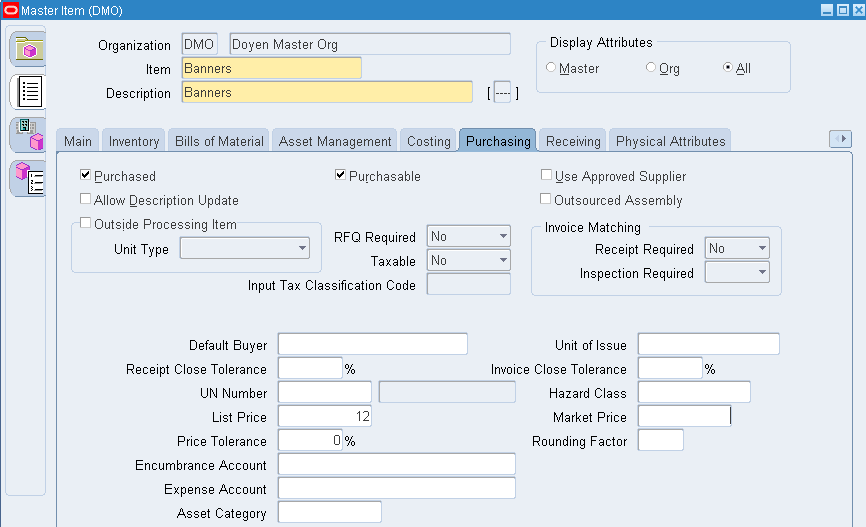

Check the Item's "List Price" in Item Master

Navigation: Inventory > Items > Master items

List Price is not available for this item "Banners"

Enter the List Price in Master Org level and then check whether it's available in iProcurement.

Entered List Price in Master Org is 12.

Now check whether this item is available in iProcurement for shopping.

Responsibility: iProcurement, Doyensys

Navigation: iProcurement Home Page

Search for the Item "Banners"

Still this item is not available for shopping.

List Price at Inventory Organization:

Now, enter the List Price in child Organization

Navigation: Items > Organization Items

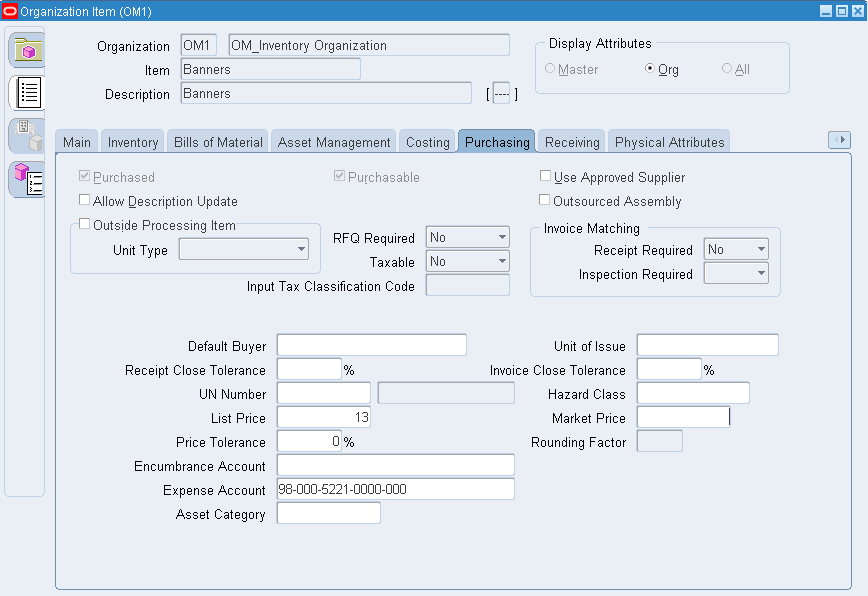

Query the Item and enter the List Price as 13.

Now query this Item in iProcurement

Responsibility: iProcurement, Doyensys

Navigation: iProcurement Home Page

Search for the Item "Banners"

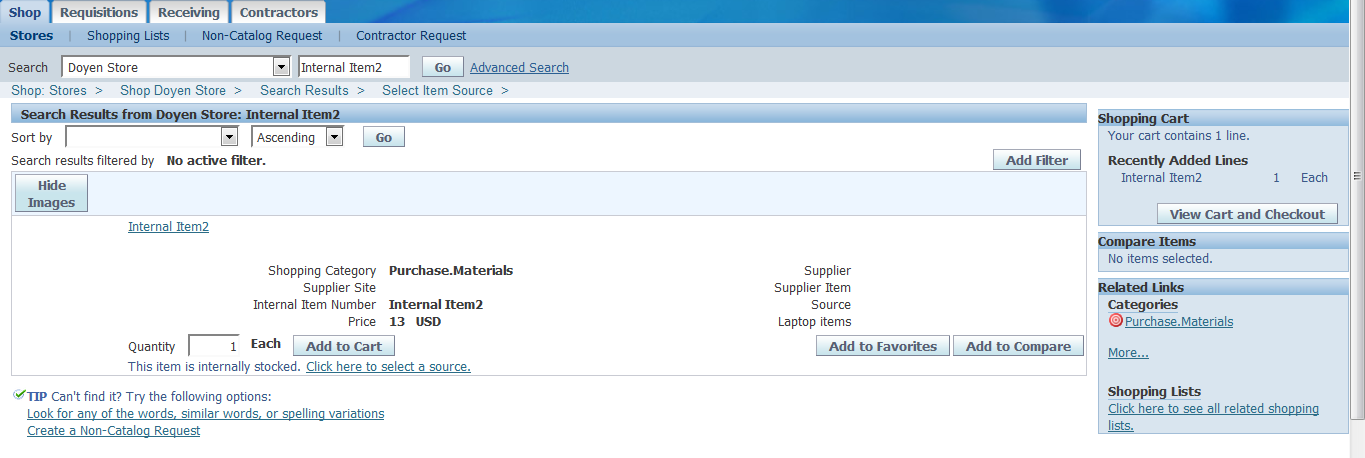

Now, this item is available for Shopping.

Create Catalog Requisition:

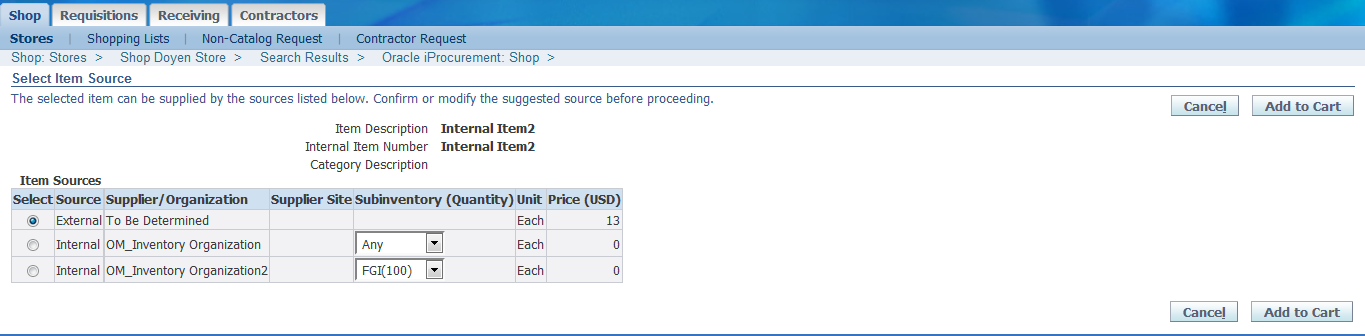

Click "Add to Cart"

Item have been added into Cart.

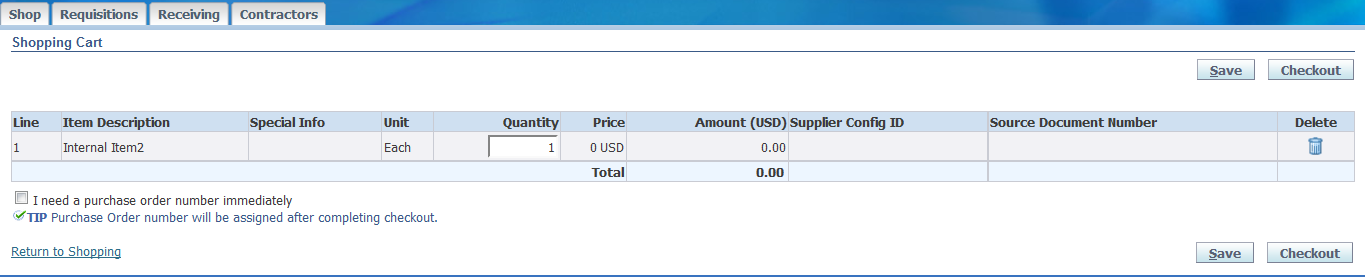

Click "View Cart and Checkout"

Click "Checkout"

Click "Next"

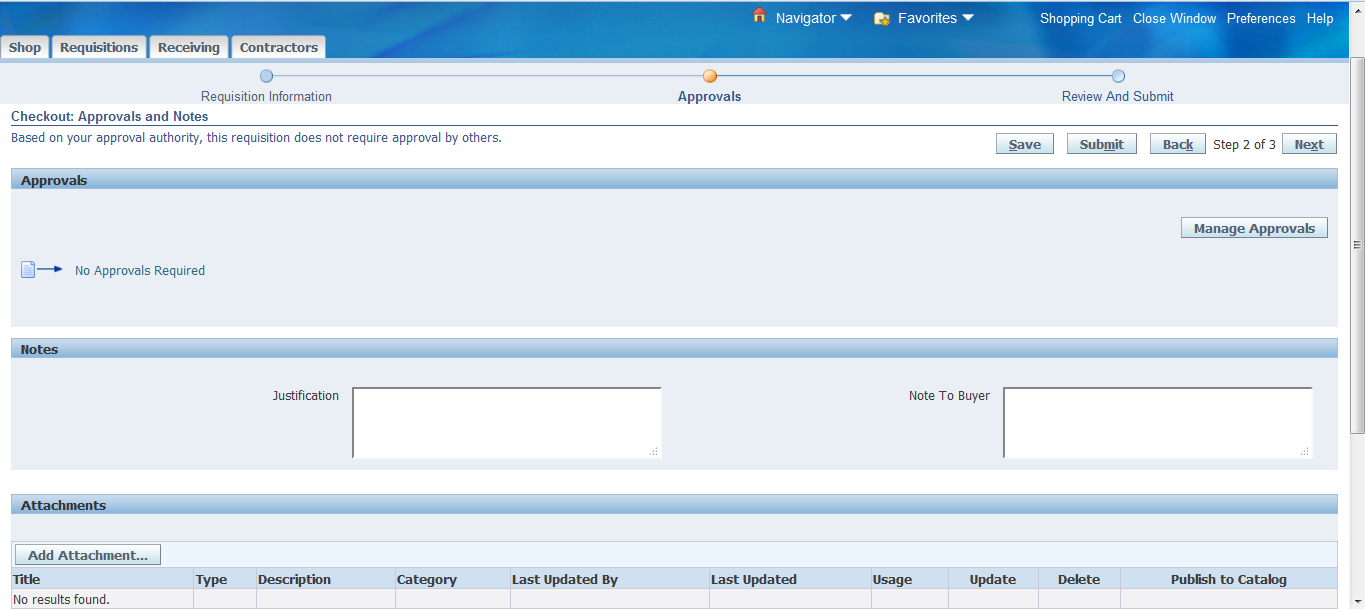

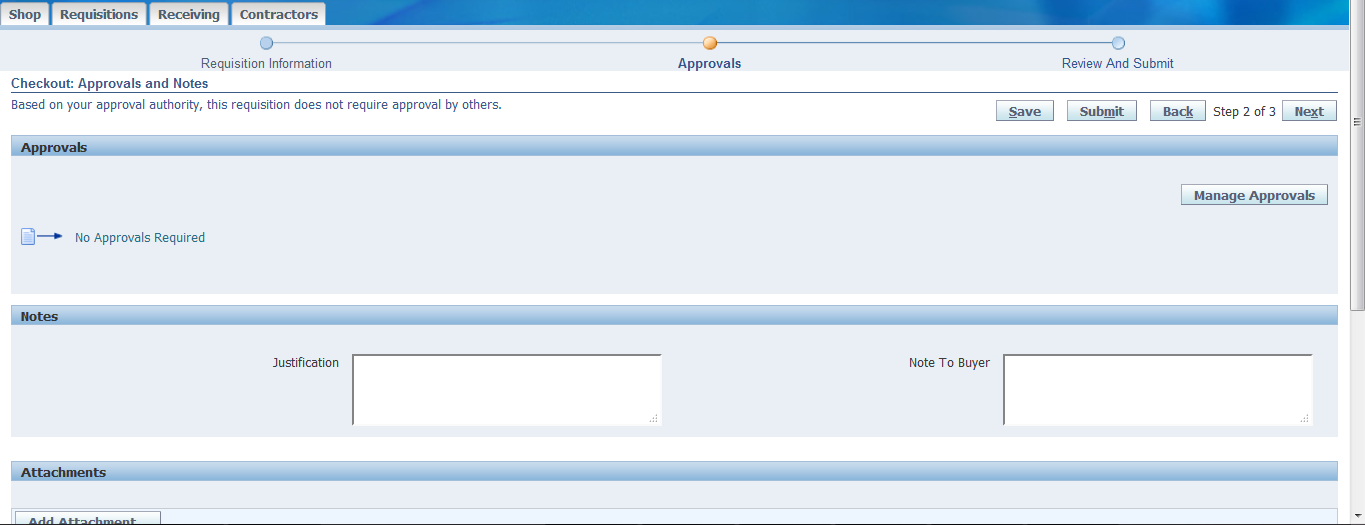

Note: Approval list has not been generated. Because, "Owner can Approve" is enabled and preparer have the limit to approve this document.

Click "Next"

Click "Submit"

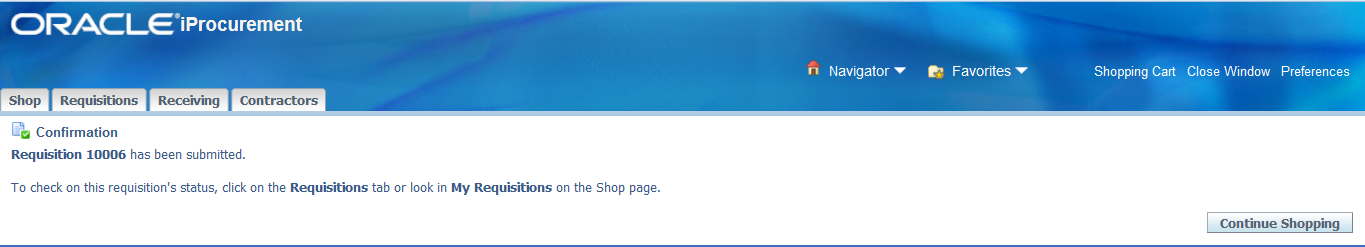

Requisition# 10006 has been created and submitted.

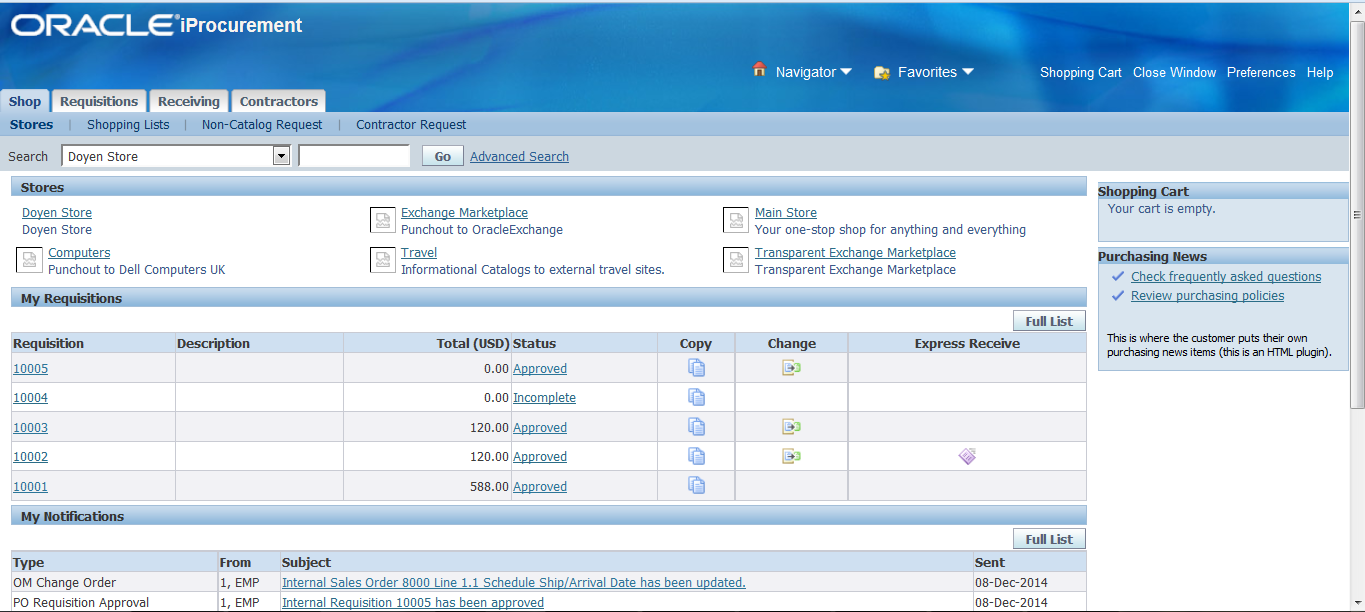

To check the Requisition status navigate to "Requisitions" TAB

Requisition# 10006 has been Approved.

Check the "Requisition Summary"

It's a Purchase Requisition and it's in Approved status.

So, List Price is must at Inventory Organization level.

Case II - Item with Blanket Purchase Agreement and without List Price:

Create the new item "Flex Boards" and DON'T enter the LIST PRICE. Also assign the Purchasing Category "Marketing.Items".

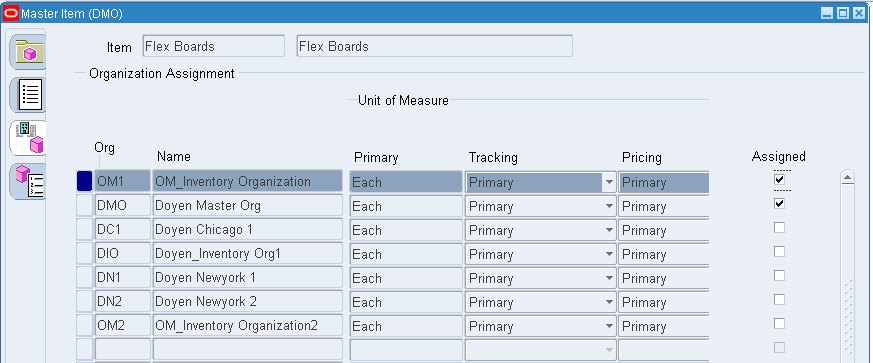

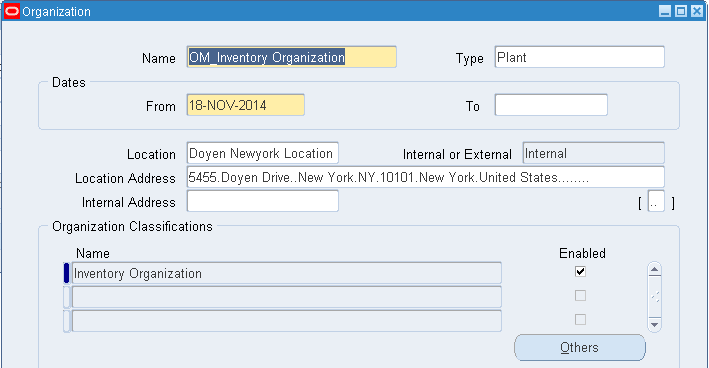

Assign it to Inventory Organization "OM1"

Now, check this item is available in iProcurement for shopping

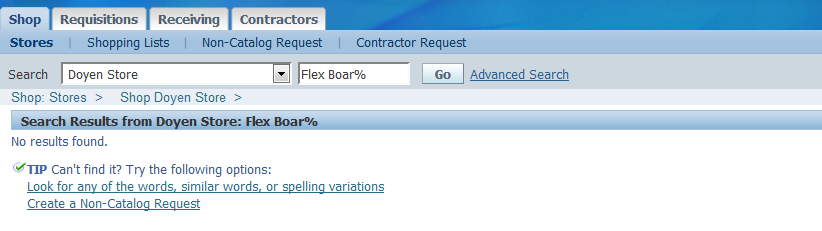

Item is not available in iProcurement for Shopping.

Create the Blanket Purchase Agreement for the item "Flex Boards" with Price USD 25.

Responsibility: Purchasing Super User

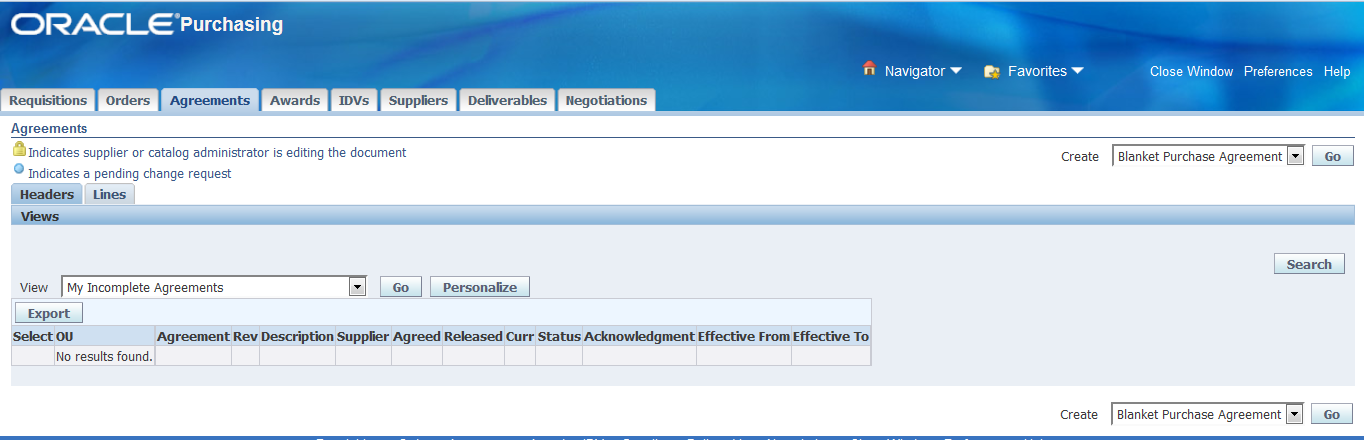

Navigation: Buyer Work Center > Agreements

Create "Blanket Purchase Agreement" and click "Go"

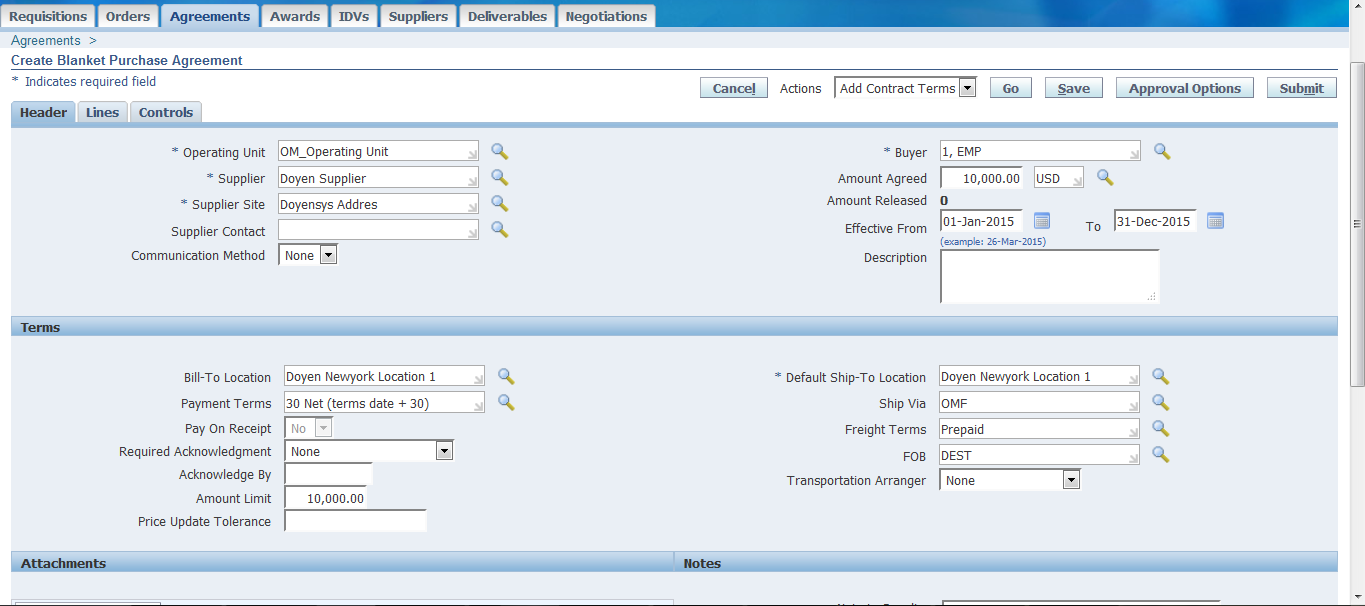

Enter the Header Details

Enter the Line Details

Price of the item "Flex Boards" is 25 USD

Click on "Approval Options"

It follows the hierarchy "PO Approval Hierarchy"

Click on "Submit Document"

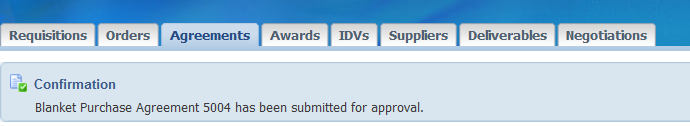

Blanket Purchase Agreement# 5004 has been Created and Submitted for Approval.

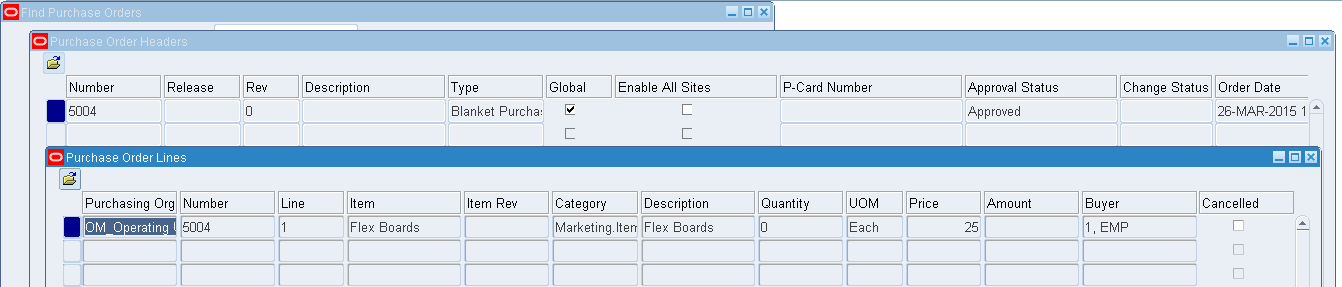

Check the BPA Status in "Purchase Order Summary" form

BPA has been "Approved" successfully.

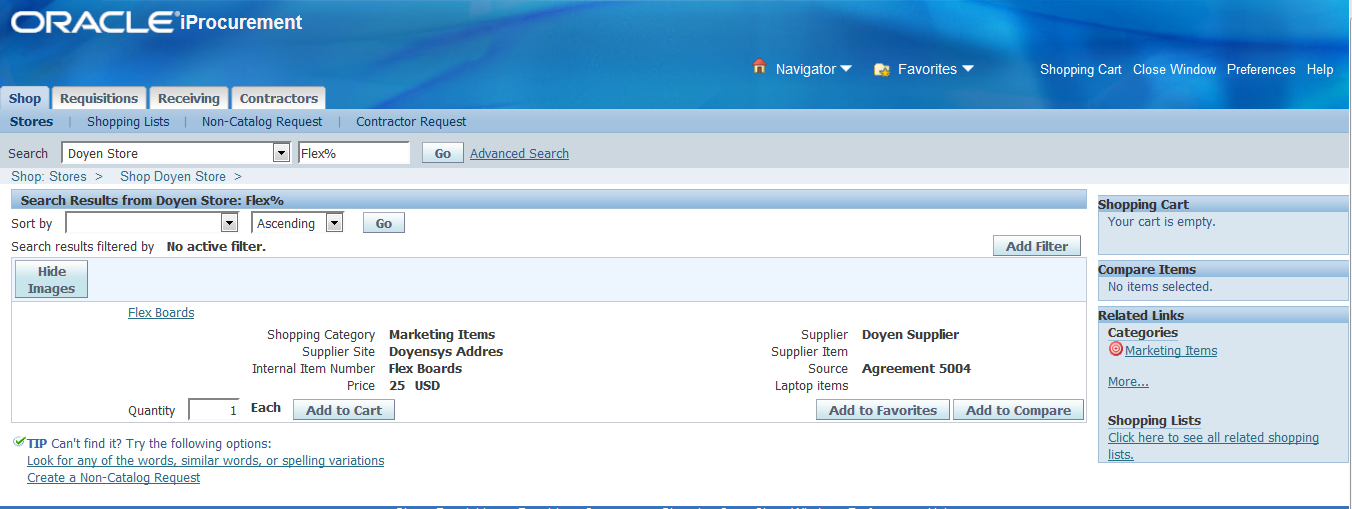

Now check this item in iProcurement

Now, this item is available in iProcurement for shopping with Price of USD 25 which is from BPA and can see the Source as "Agreement 5004".

Case III - Item with List Price and Blanket Purchase Agreement:

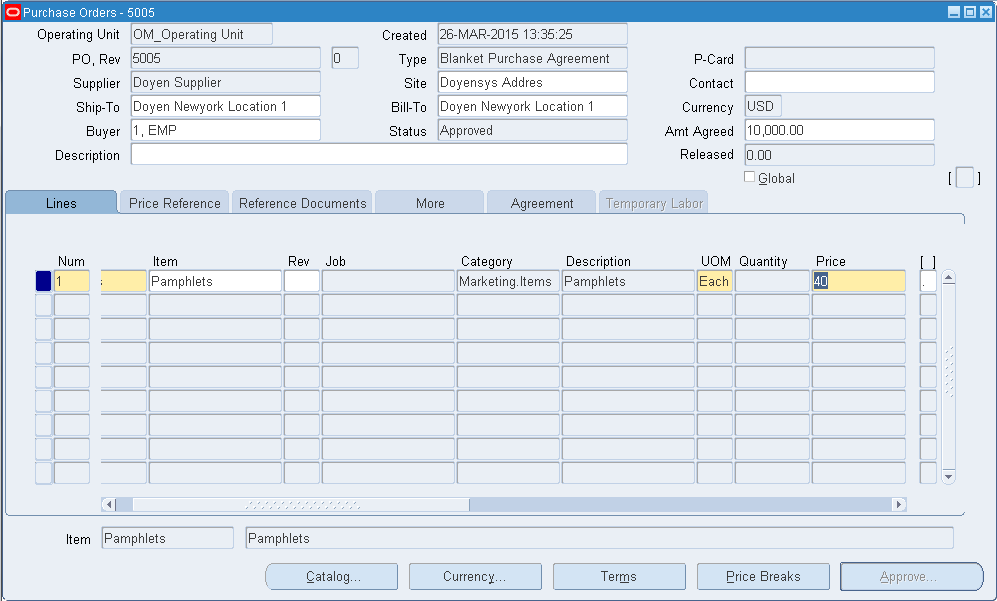

Create a new Item "Pamphlets" and enter the List Price as 30 USD

Create the BPA for this item with Item Price as USD 40

Blanket Purchase Agreement# 5005 has been created and Approved for the Item "Pamphlets" with USD 40.

Now check this item in iProcurement

This item is available in iProcurement with List Price USD 40. This price is from BPA and not from List Price.

Case IV - Item Without Shopping Category:

Step 1: Profile Option:

Set the Profile Option "POR: Autocreate Shopping Category and Mapping" to "Yes" (Site Level)

Step 2: Create new Purchasing Category "Purchase.Materials"

A). Navigation: Inventory > Setup > Flexfields > Segments

Query the KFF for "Item Categories" and check the Segments and Value Sets for "PO Item Category"

Note down the Value Set for both the Segments

Item Category  = PO Item Category

Commodity  = Commodity

B). Add the new values "Purchase" & "Materials" in both the value sets

Navigation: Inventory > Setup > Flexfields > Values

Add the new value "Purchase" in "PO Item Category" Value Set

Add the new value "Materials" in "Commodity" Value Set

C). Create the purchasing category as "Purchase.Materials"

Navigation: Inventory > Setup > Items > Categories > Category Codes

D). Add this new purchasing category "Purchase.Materials" into "Purchasing" Category Set

Navigation: Inventory > Setup > Items > Categories > Category Sets

Step 3: Item Creation:

Create a new item "Filter" with List Price USD 50 and assign the new Purchasing Category "Purchase.Materials".

Step 4: Check the Category Mapping:

Responsibility: iProcurement Catalog Administrator

Navigation: Schema > Category Mapping

Query the newly created purchasing category "Purchase.Materials"

Automatically Shopping Category has been created with the same Purchasing Category name and it's Mapped. This is because of that profile option.

Step 5: Item availability in iProcurement:

Check this item is available in iProcurement for shopping or not

Item not available in iProcurement. Because we have restricted the catalog by category name "Marketing.Items".

Step 6: Check our content zone "Doyen Content Zone" for our Store:

Responsibility: iProcurement Catalog Administrator

Navigation: Stores > Content Zones

Click on "Update" button for our content zone "Doyen Content Zone"

It's restricted to "Marketing Items" category.

Change this restriction and enable "Include items from all categories"

Apply.

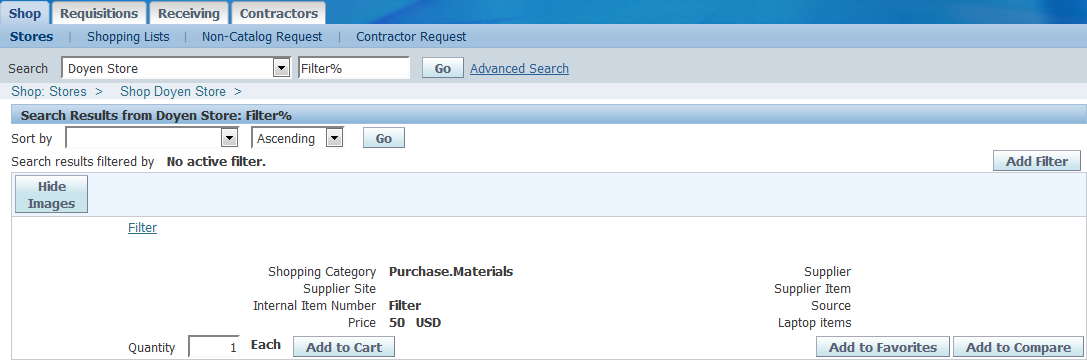

Now, check the item "Filter" is available in iProcurement for shopping or not

Yes. Now, the item is available for shopping in iProcurement.

Case V - Internal Requisition through iProcurement

Step 1 - Profile Option:

Responsibility: System Administrator Navigation: Profile > System

Set the profile option "POR:Allow Manual Selection of Source" to "Yes"

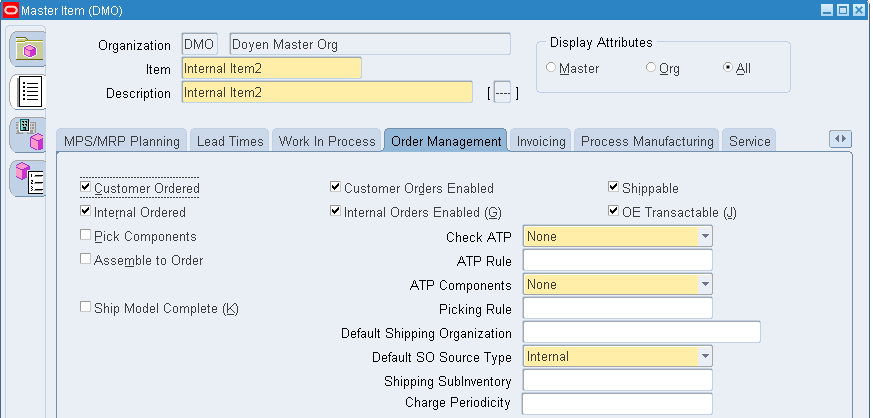

Step 2 - Create a Item and  Assign it to two Organizations:

Responsibility: Inventory Super User Navigation: Items > Master Items

Created the Internal item "Internal Item2" with Purchasing Category "Purchase.Materials" and assigned to OM1 & OM2

Step 3 - Attach Inventory Organization into Location:

Navigation: Inventory > Setup > Organizations > Organizations

Query the Organization OM1 "OM_Inventory Organization" and note down the Location.

Location is "Doyen Newyork Location 1"

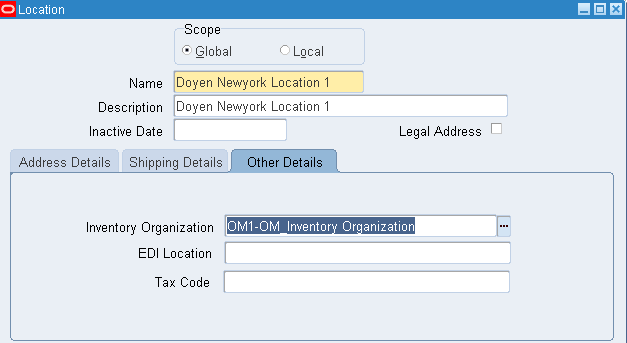

Now, attach the Inventory Org in Location.

Navigation: Inventory > Setup > Organizations > Locations

Query the Location "Doyen Newyork Location 1" and attach the Inventory Organization "OM1-OM_Inventory Organization"

Step 4 - Shipping Network:

Navigation: Inventory > Setup > Organizations > Shipping Networks

Define the Shipping Networks between both the Inventory Organizations OM1 and OM2

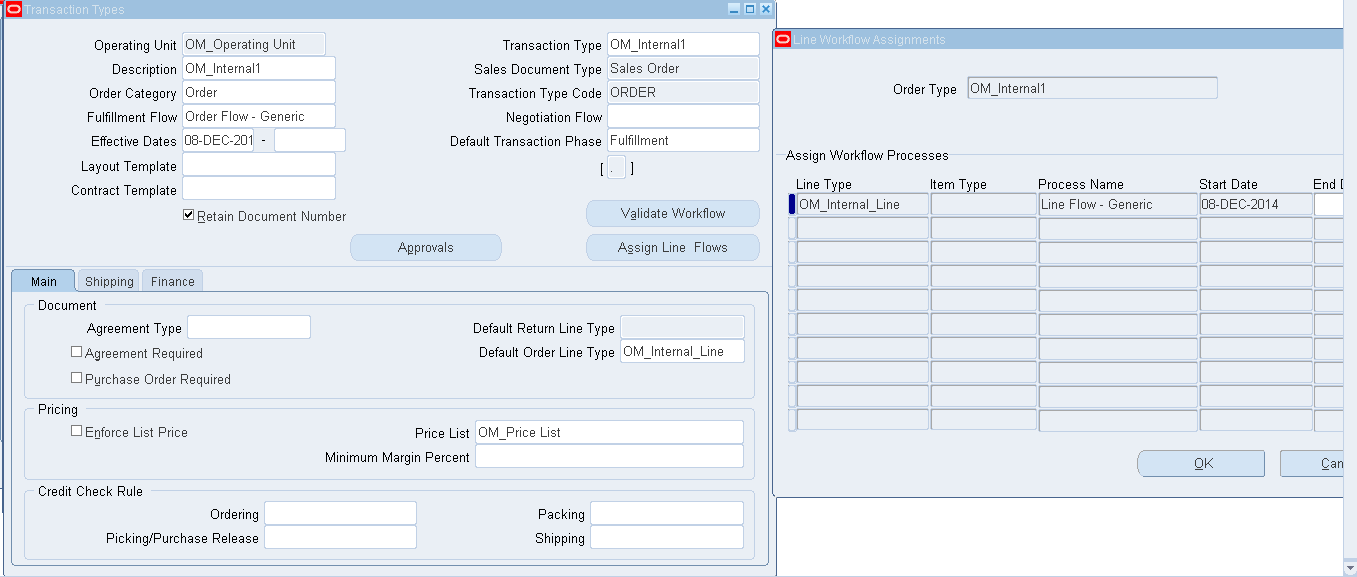

Step 5 - Define Internal Order Transaction Type

Responsibility: Order Management Super User

Navigation: Setup > Transaction Types > Define

Defined the Internal Order "OM_Internal1"

Step 6 - Define Internal Customer

Responsibility: Order Management Super User

Navigation: Customers > Standard

Defined the Internal Customer "OM Internal Customer" and attached the internal location and organization in Ship To site.

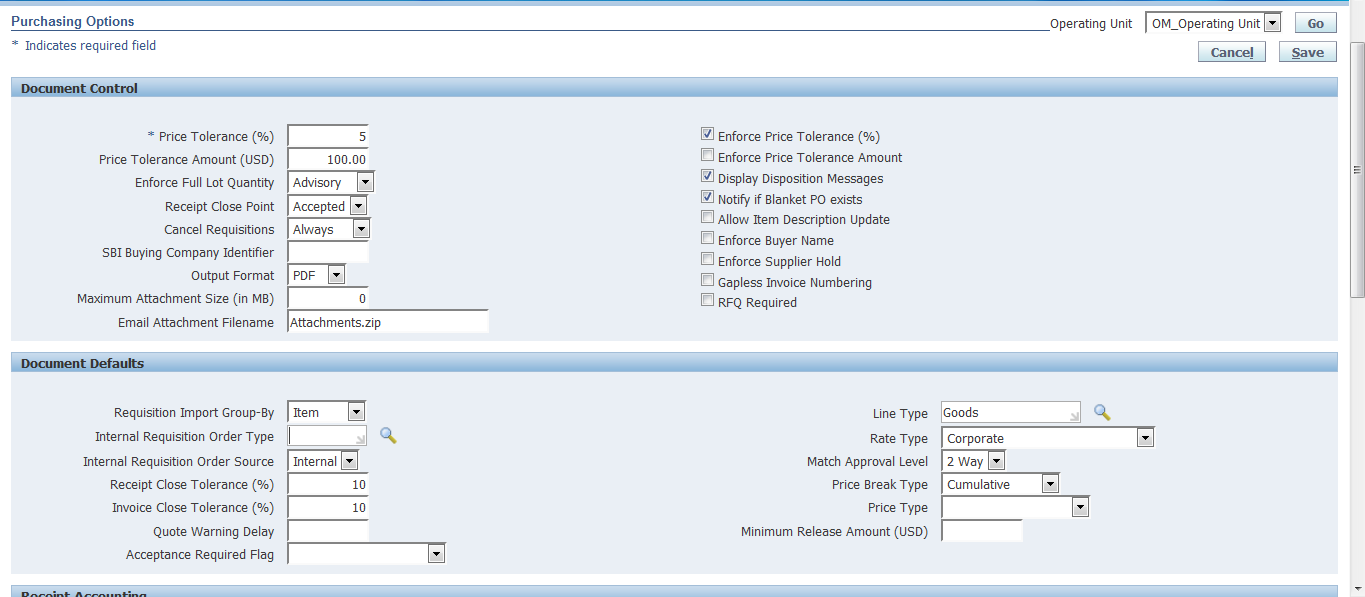

Step 7 - Assign Internal Requisition Source Type in Purchasing Options

Responsibility: Purchasing Super User

Navigation: Setup > Organizations > Purchasing Option

Step 9 - Create Internal Requisition in iProcurement

Responsibility: iProcurement Navigation: iProcurement Home Page

Search for the item "Internal Item2"

Click on "Click here to select a source" link

We have the 100 quantities stock in OM_Inventory Organization2.

Select the Source as "Internal" and the organization is "OM_Inventory Organization2"

Click on "Add to Cart"

Click "View Cart and Checkout"

Click "Checkout"

Click "Next"

Click "Submit"

Step 10 - Requisition Summary

Check the Requisition Type and Status in Requisition Summary

Navigation: Purchasing > Requisitions > Requisition Summary

Step 11 - Run "Create Internal Orders" and "Import Orders" program

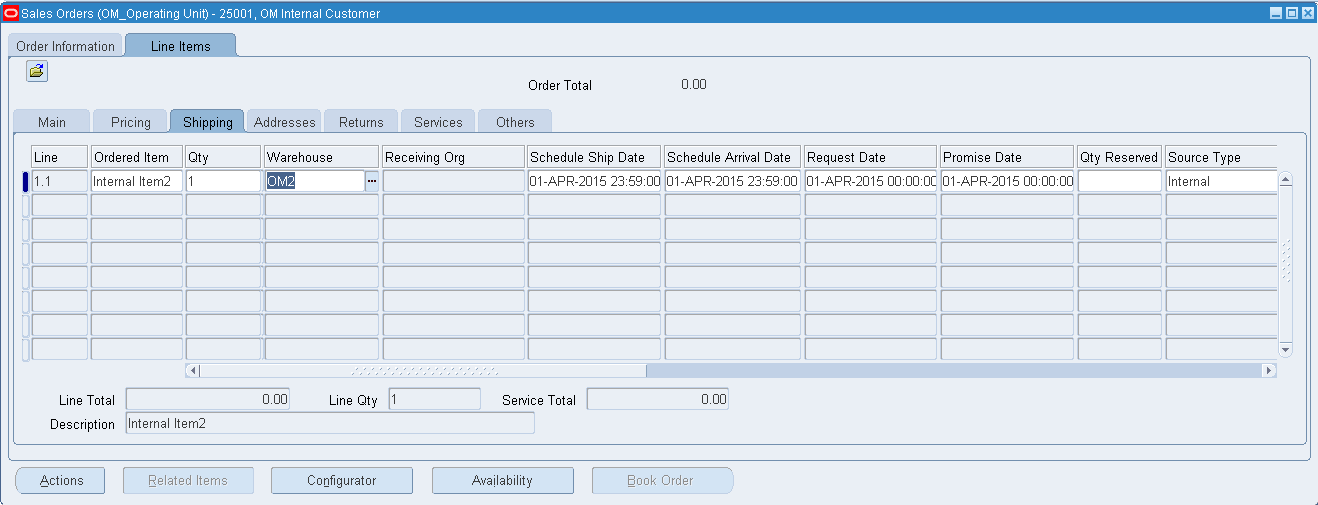

Step 12 - Query Internal Orders

Responsibility: Order Management Super User

Navigation: Orders, Returns > Order Organizer

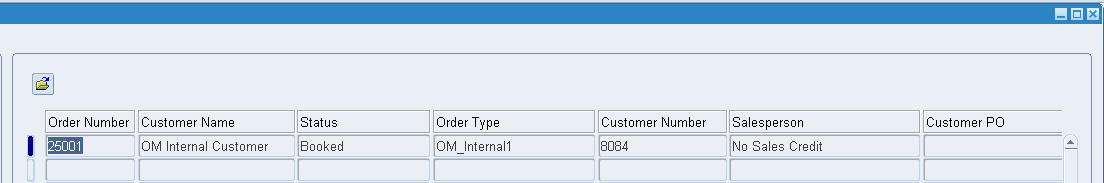

Internal Order# 25001 has been created and it's Booked

Pick Release the order and do Shipping and then receive the item in OM1.
